Which standards do your pipe fittings and flanges comply with?

We manufacture to ASME B16.5, ASME B16.47, ASME B16.36, ASME B16.9, ASME B16.11, MSS SP-97, EN 1092-1, BS 10, DIN, JIS, ISO and API standards, with materials certified to the relevant ASTM / ASME specifications such as ASTM A182, A105, A234, A403, A350 and A420.

Do you supply mill test certificates with every order?

Yes. Every shipment is supplied with EN 10204 3.1 mill test certificates, and each piece is marked with its heat number so chemistry and mechanical properties can be traced back to the original melt. Third-party inspection by the buyer's nominated agency can be arranged on request.

Which materials do you keep in ready stock?

We hold ready stock in stainless steel (304, 304L, 316, 316L, 904L), duplex and super duplex, carbon steel (A105, A234 WPB, A350 LF2), alloy steel (F11, F22, WP11, WP22) and nickel alloys including Inconel, Hastelloy, Monel and Incoloy, as well as titanium grades.

Can you manufacture custom or non-standard piping components?

Yes. We produce custom-made piping connections to customer drawings, including sizes larger than 4 inch, special bores, non-standard pressure classes and open die forgings.

What fastener sizes and grades can you produce?

We produce high tensile bolts and nuts from M20 to M72 in metric and 3/4 inch to 3 inch in UNC, in property classes 8.8, 10.9 and 12.9, as well as ASTM A193 B6, B7, B8, B8M stud bolts and ASTM A194 2H heavy hex nuts.

Which countries do you export pipe fittings and flanges to?

Our main export markets include the UAE, Saudi Arabia, Qatar, Oman, Turkey, Egypt, Malaysia, Indonesia, the Philippines and Singapore, with sales representation in Poland, Italy, the UK, the USA and other countries.

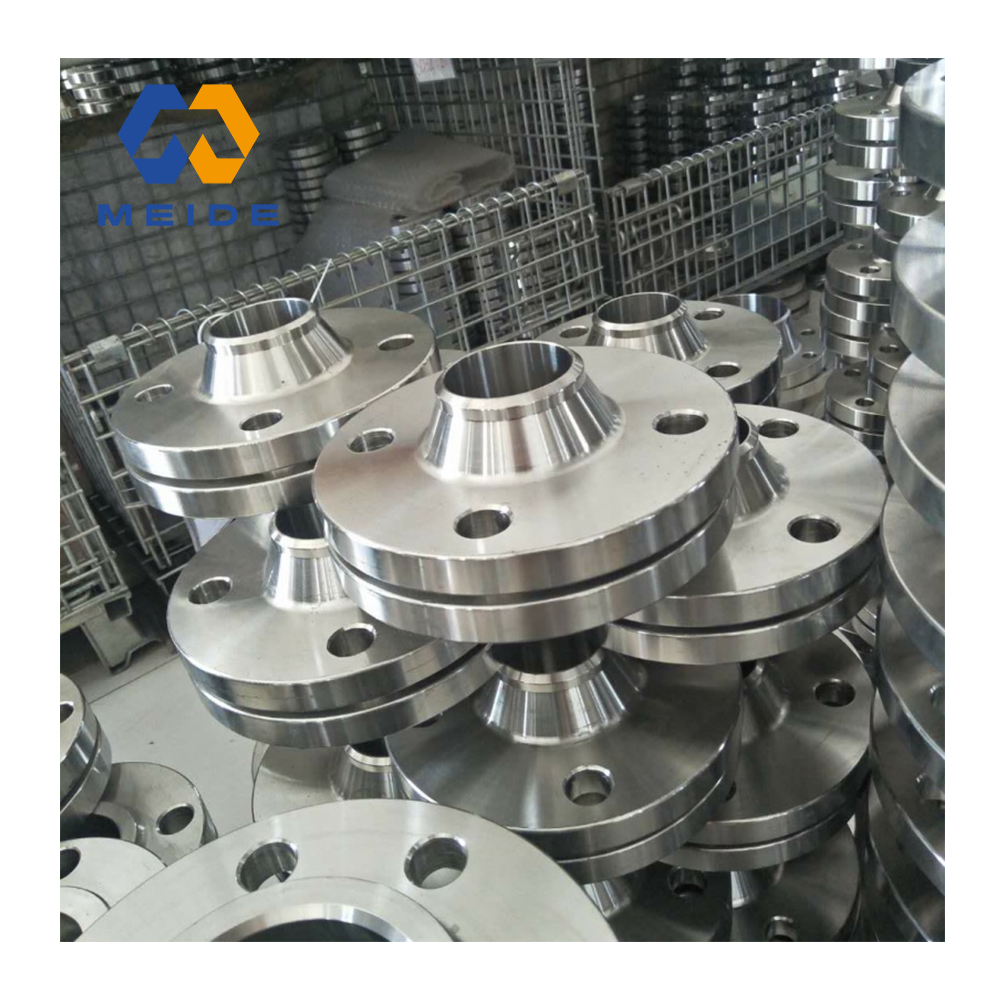

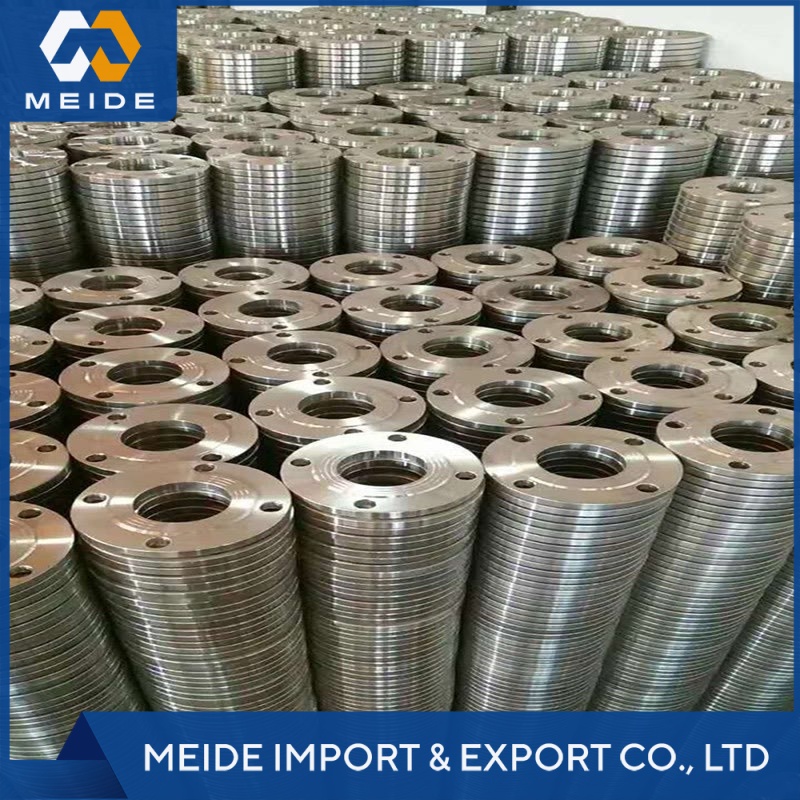

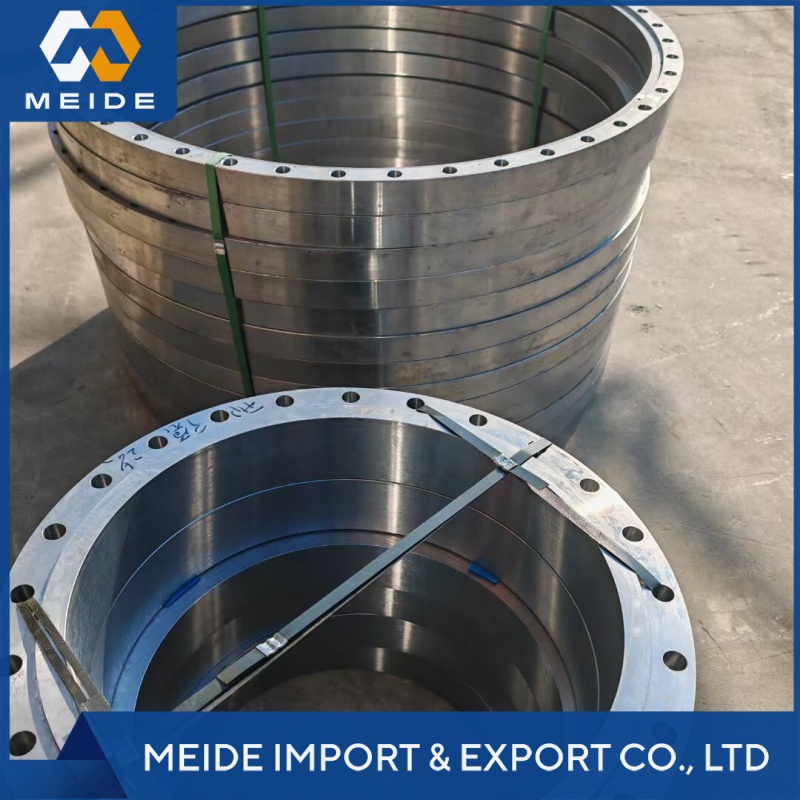

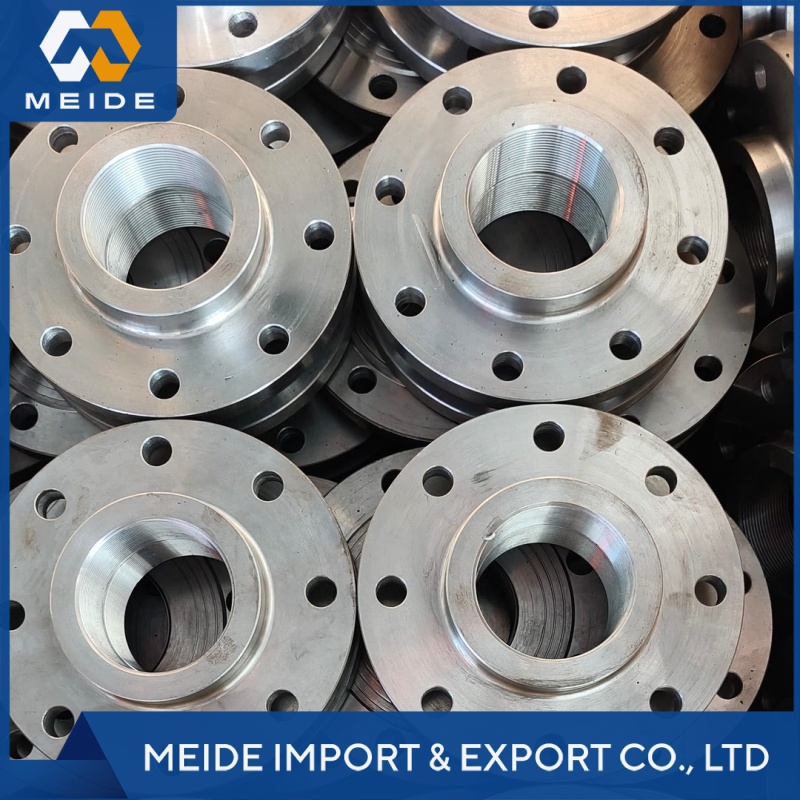

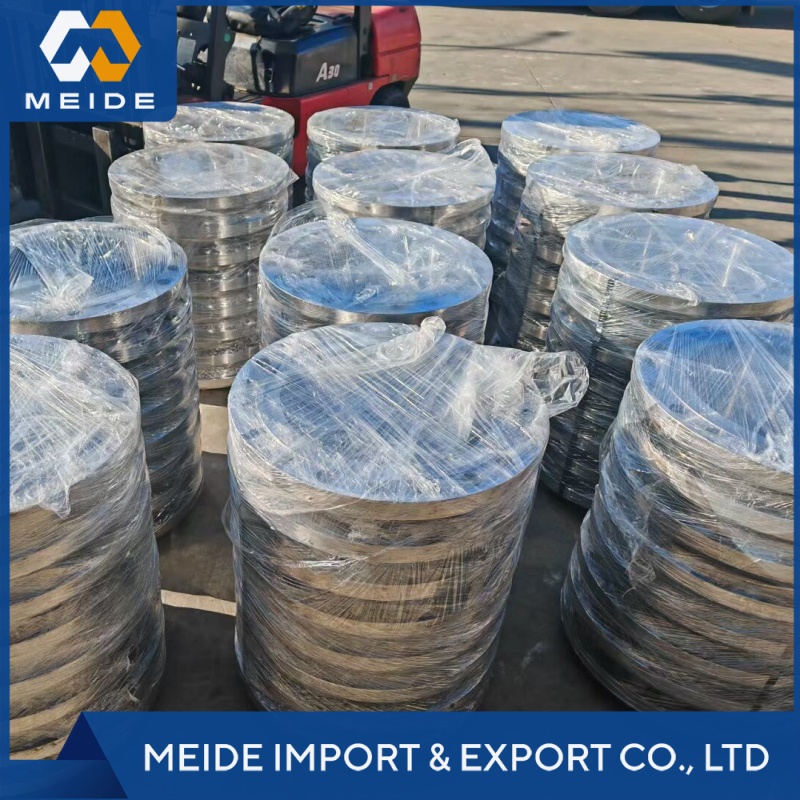

Meide Forged Flange & Forging Ring | Carbon/Stainless Steel | ASME B16.5 DIN Standard | OEM/ODM Available | 10 Pieces MOQ

1 / 5

Meide Forged Flange & Forging Ring | Carbon/Stainless Steel | ASME B16.5 DIN Standard | OEM/ODM Available | 10 Pieces MOQ

Send Inquiry

Meide Forged Flange &amp; Forging Ring | Carbon/Stainless Steel | ASME B16.5 DIN Standard | OEM/ODM Available | 10 Pieces MOQ
