Which standards do your pipe fittings and flanges comply with?

We manufacture to ASME B16.5, ASME B16.47, ASME B16.36, ASME B16.9, ASME B16.11, MSS SP-97, EN 1092-1, BS 10, DIN, JIS, ISO and API standards, with materials certified to the relevant ASTM / ASME specifications such as ASTM A182, A105, A234, A403, A350 and A420.

Do you supply mill test certificates with every order?

Yes. Every shipment is supplied with EN 10204 3.1 mill test certificates, and each piece is marked with its heat number so chemistry and mechanical properties can be traced back to the original melt. Third-party inspection by the buyer's nominated agency can be arranged on request.

Which materials do you keep in ready stock?

We hold ready stock in stainless steel (304, 304L, 316, 316L, 904L), duplex and super duplex, carbon steel (A105, A234 WPB, A350 LF2), alloy steel (F11, F22, WP11, WP22) and nickel alloys including Inconel, Hastelloy, Monel and Incoloy, as well as titanium grades.

Can you manufacture custom or non-standard piping components?

Yes. We produce custom-made piping connections to customer drawings, including sizes larger than 4 inch, special bores, non-standard pressure classes and open die forgings.

What fastener sizes and grades can you produce?

We produce high tensile bolts and nuts from M20 to M72 in metric and 3/4 inch to 3 inch in UNC, in property classes 8.8, 10.9 and 12.9, as well as ASTM A193 B6, B7, B8, B8M stud bolts and ASTM A194 2H heavy hex nuts.

Which countries do you export pipe fittings and flanges to?

Our main export markets include the UAE, Saudi Arabia, Qatar, Oman, Turkey, Egypt, Malaysia, Indonesia, the Philippines and Singapore, with sales representation in Poland, Italy, the UK, the USA and other countries.

Pipe Fittings & Flanges Manufacturer in India | Rajtilak Metal

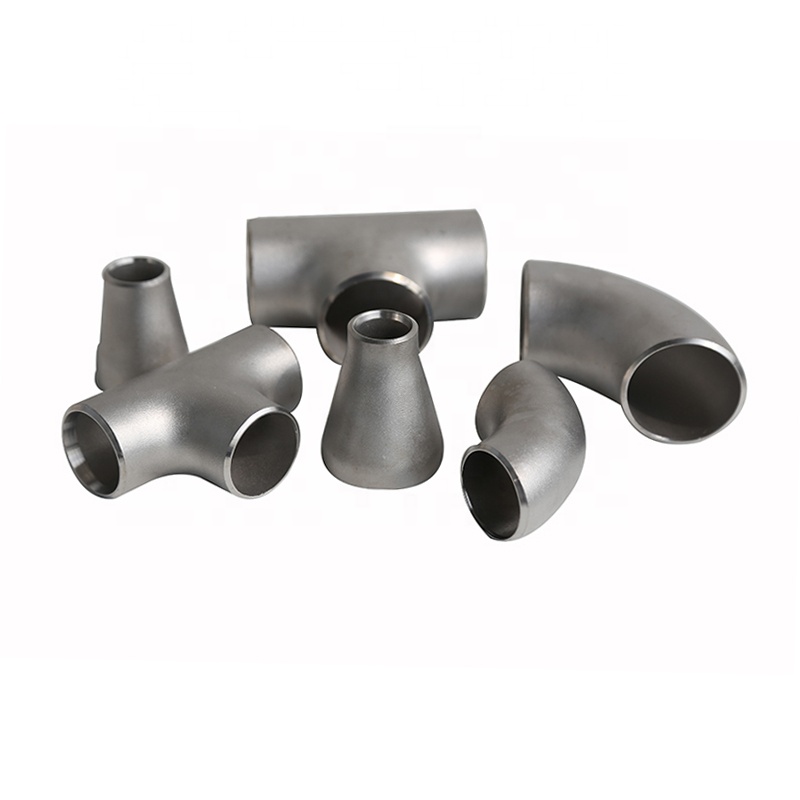

Products Description

Product Name	Elbow
Material	Stainless Steel, Carbon Steel
Standard	DIN, ANSI, JIS, ASME, SMS, BSP, API, IDF, EN, ASTM
Customized Support	OEM, ODM
Media	Gas / Water / Oil
Connection Method	Welded Connecting
Sample	Sample Freely
Service	24 Hours Online

1. Rough polish first before sand rolling, then the surface will be much smooth.
2. Without lamination and cracks.
3. Without any weld repairs.
4. Surface treatment can be pickled, sand rolling, matt finished, mirror polished. For sure, the price is different. For your reference, sand rolling surface is the most popular. The price for sand roll is suitable for most clients.

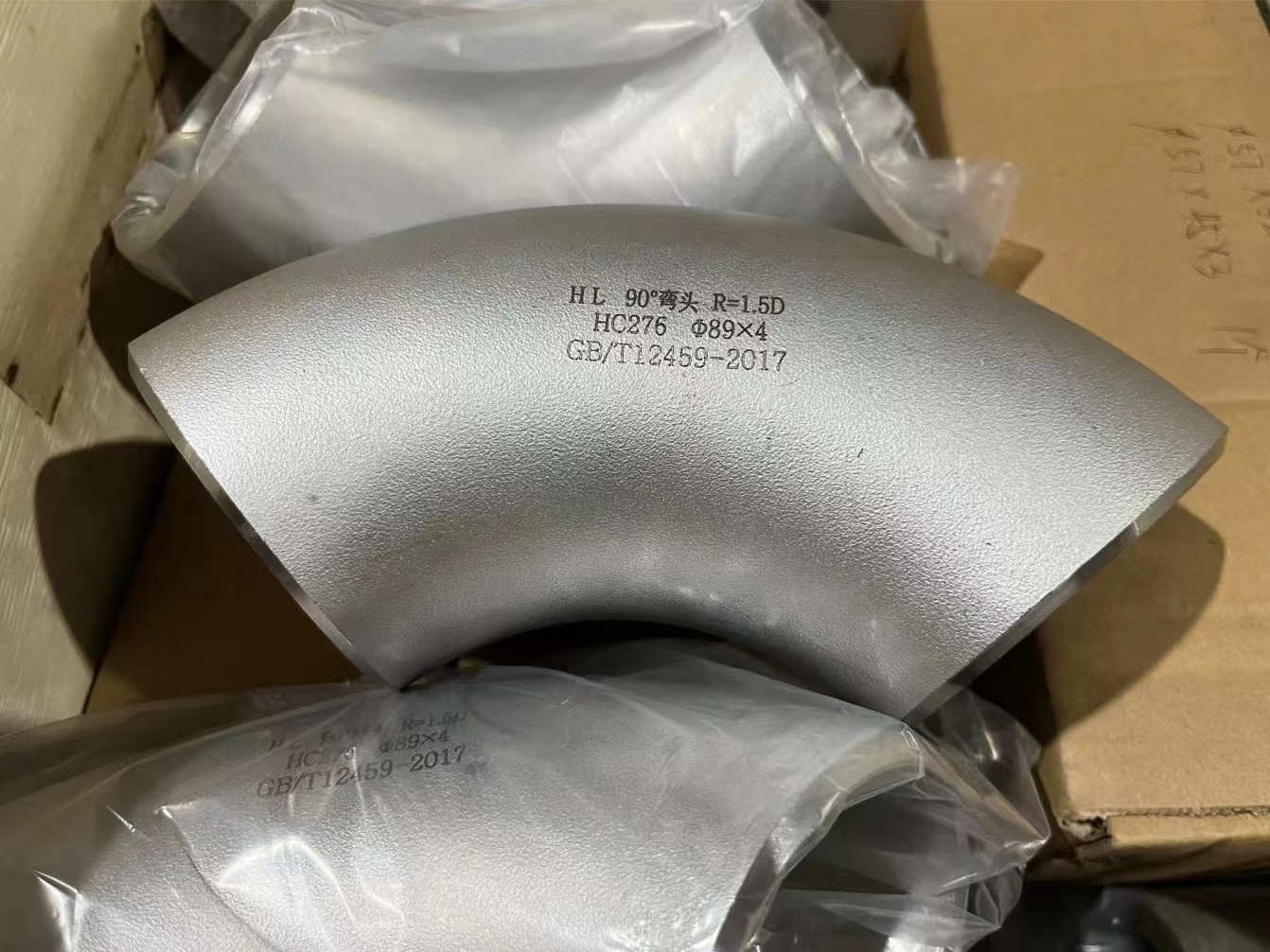

Various marking work can be on your request. We accept mark your LOGO.

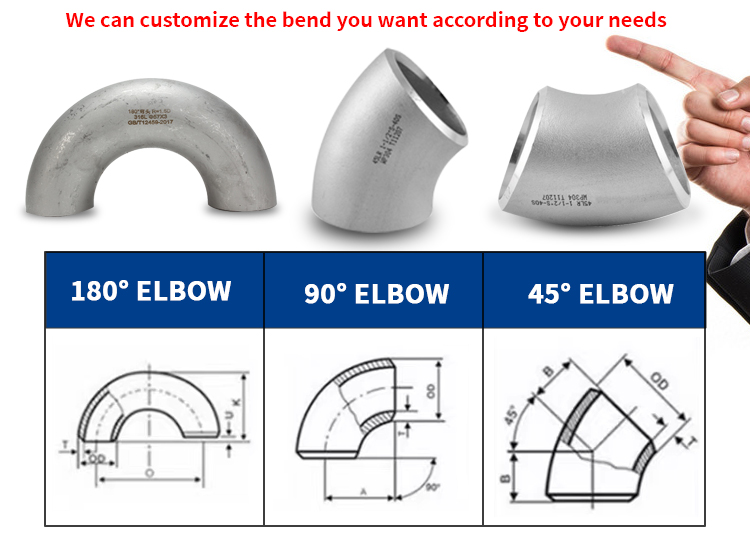

Dimensions & Specifications

Nominal Size		Outside Diameter at Bevel (D/mm)		Center to End
DN	NPS	I	Ⅱ	90° Elbow A/mm	45° Elbow B/mm
15	1/2	21.3	18	38	16
20	3/4	26.9	25	38	19
25	1	33.7	32	38	22
32	1-1/4	42.4	38	48	25
40	1-1/2	48.3	45	57	29
50	2	60.3	57	76	35
65	2-1/2	73.0	76	95	44
80	3	88.9	89	114	51
90	3-1/2	101.6	——	133	57
100	4	114.3	108	152	64
125	5	141.3	133	190	79
150	6	168.3	159	229	95
200	8	219.1	219	305	127
250	10	273.0	273	381	159
300	12	323.9	325	457	190
350	14	355.6	377	533	222
400	16	406.4	426	610	254
450	18	457.0	480	686	286
500	20	508.0	530	762	318
550	22	559.0	——	838	343
600	24	610.0	630	914	381
650	26	660.0	——	991	406
700	28	711.0	720	1067	438
750	30	762.0	——	1143	470
800	32	813.0	820	1219	502
850	34	864.0	——	1295	533
900	36	914.0	——	1372	565
950	38	965.0	——	1448	600
1000	40	1016.0	——	1524	632
1050	42	1067.0	——	1600	660
1100	44	1118.0	——	1676	695
1150	46	1168.0	——	1753	727
1200	48	1219.0	——	1829	759
1300	52	1321.0	——	1981	821
1400	56	1422.0	——	2134	884
1500	60	1524.0	——	2286	947

Frequently Asked Questions

Q1 Can you send the product to my country?

A

Of course you can. If you do not have your own shipping agent, we can help you.

Q2 Do you provide samples? Is it free or extra?

A

Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q3 Is it safe for me regarding the payment since we are having the first cooperation?

A

We can do the trade assurance on Alibaba, which will guarantee your payment safety. We also accept other safe payment methods as you like.

Q4 How long is your production lead time?

A

Generally it is 5 days if the goods are in stock. or it is 5-15 days if the goods are not in stock, it is according to quantity.

Q5 What is your after-sale service?

A

We provide after-sale service and offer 100% guarantee on our products.

Q6 Do you accept OEM/ODM services?

A

Yes, we can produce products according to your requirements.

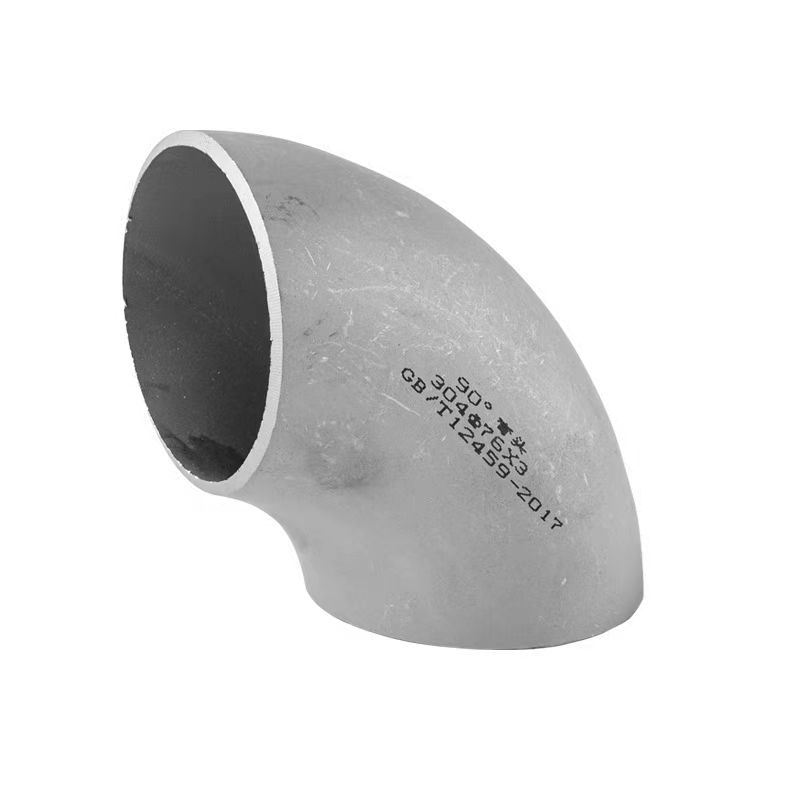

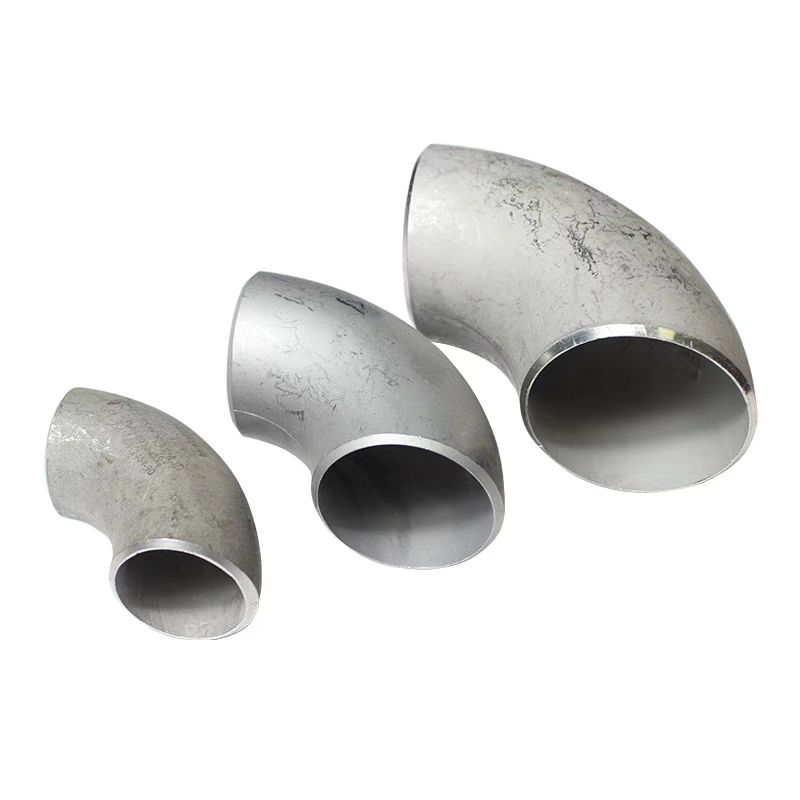

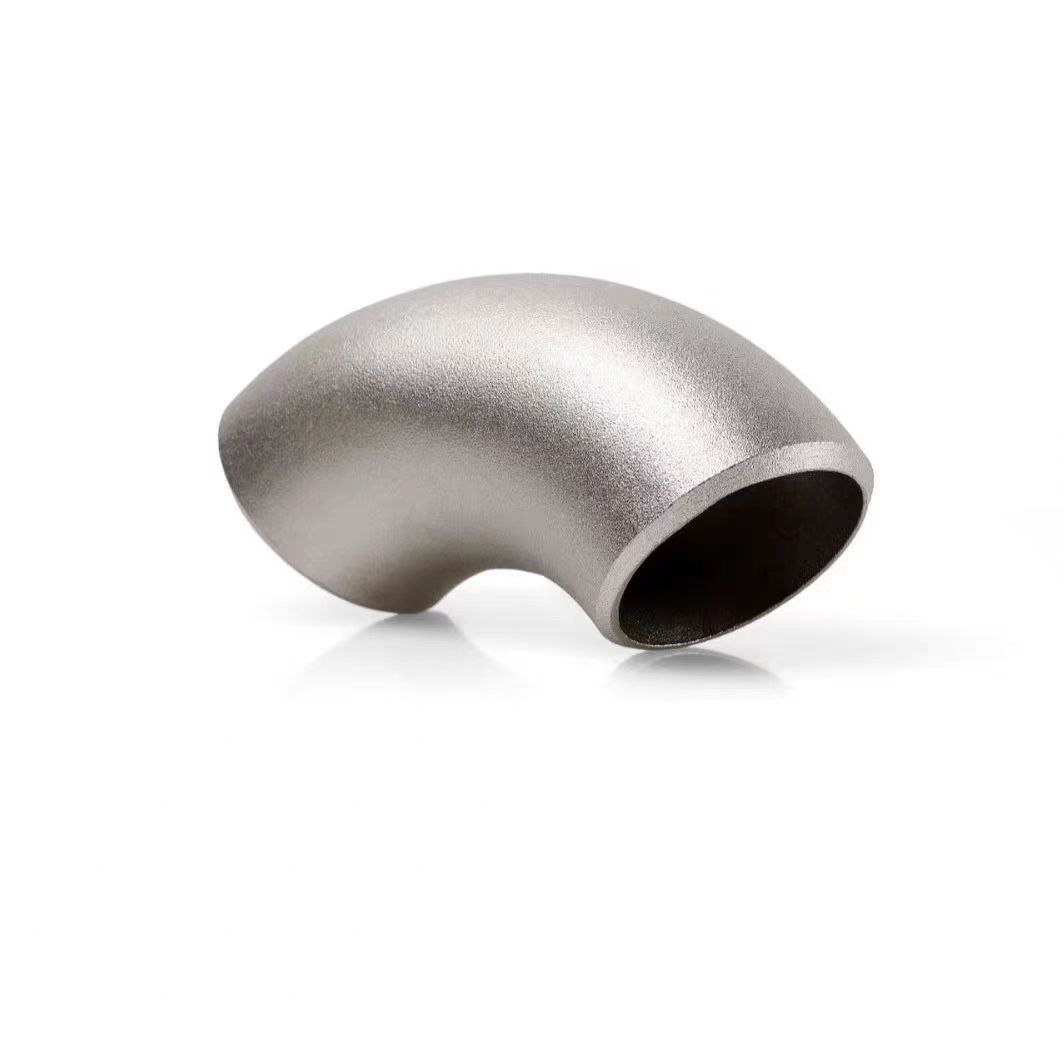

Butt Welding Aluminum Pipe Fittings Seamless Sch80s Aluminium Alloy 90 Degree Long Radius Pipe Elbow
