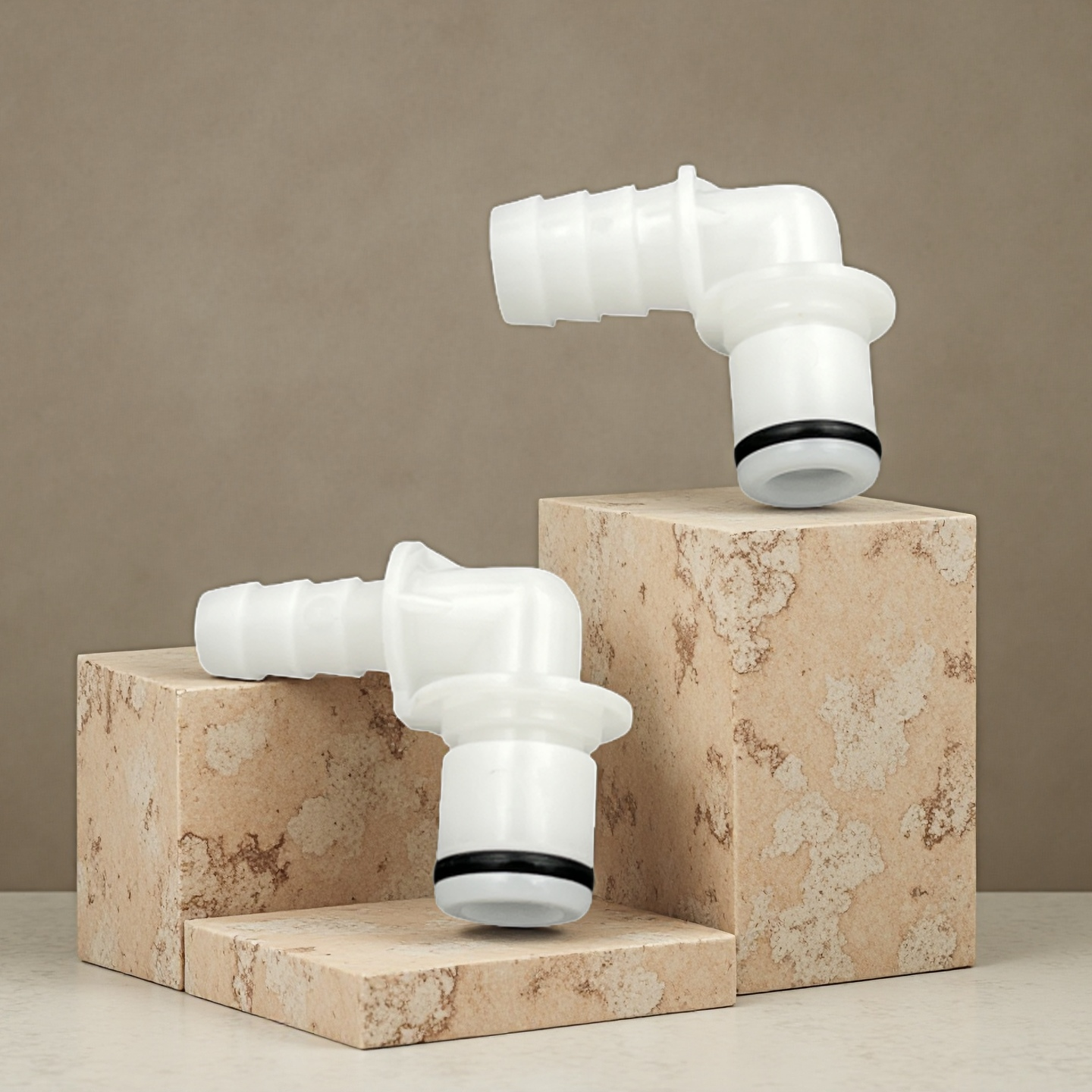

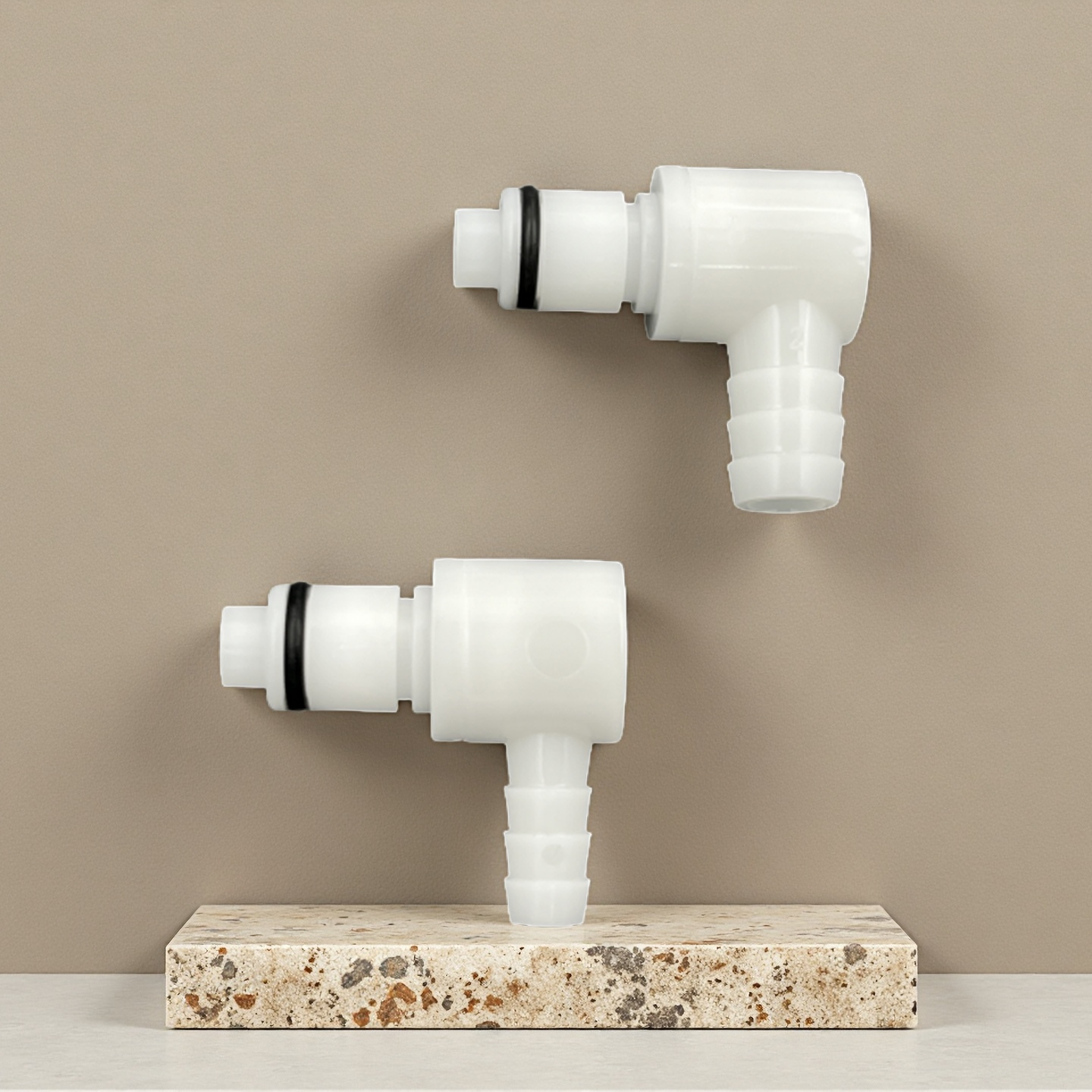

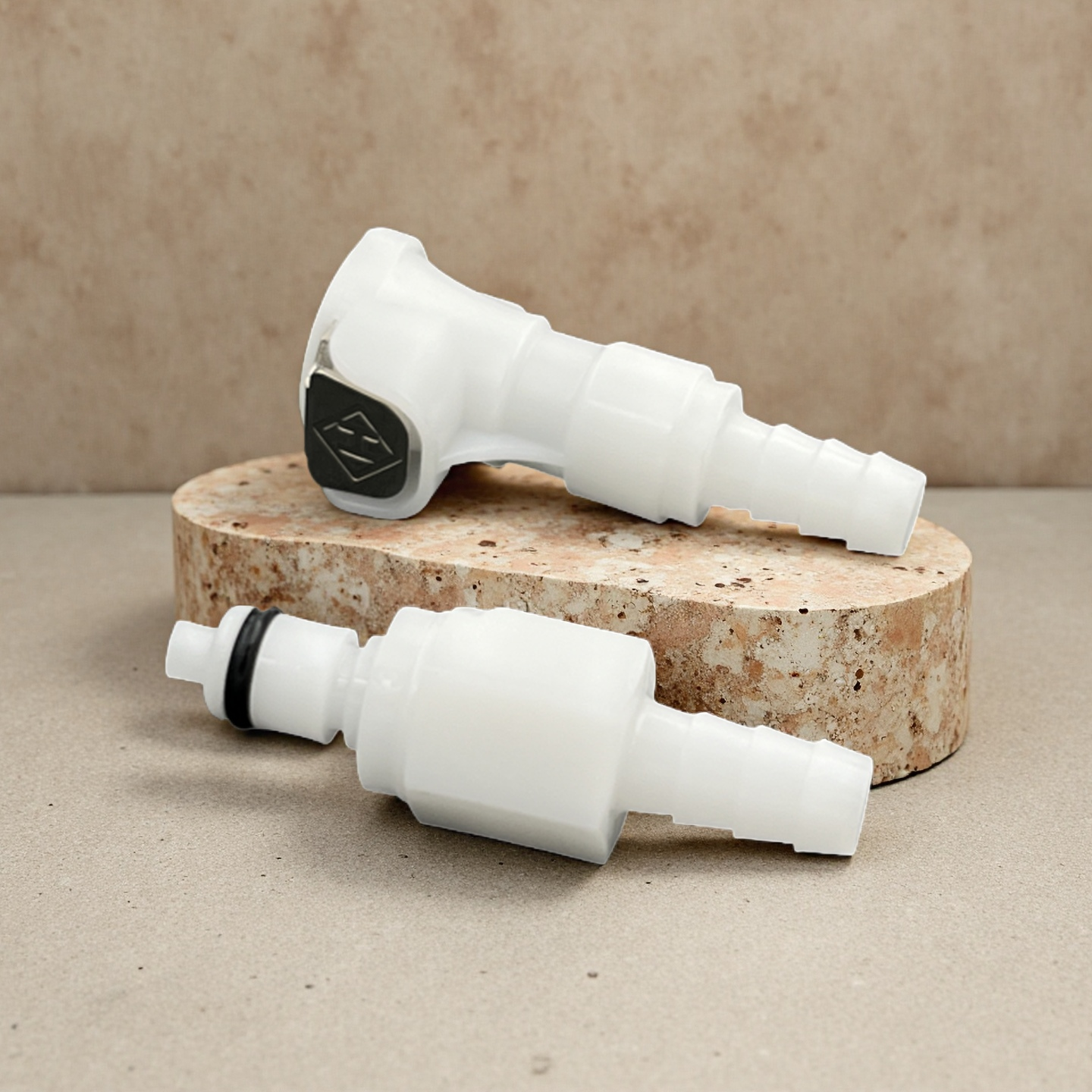

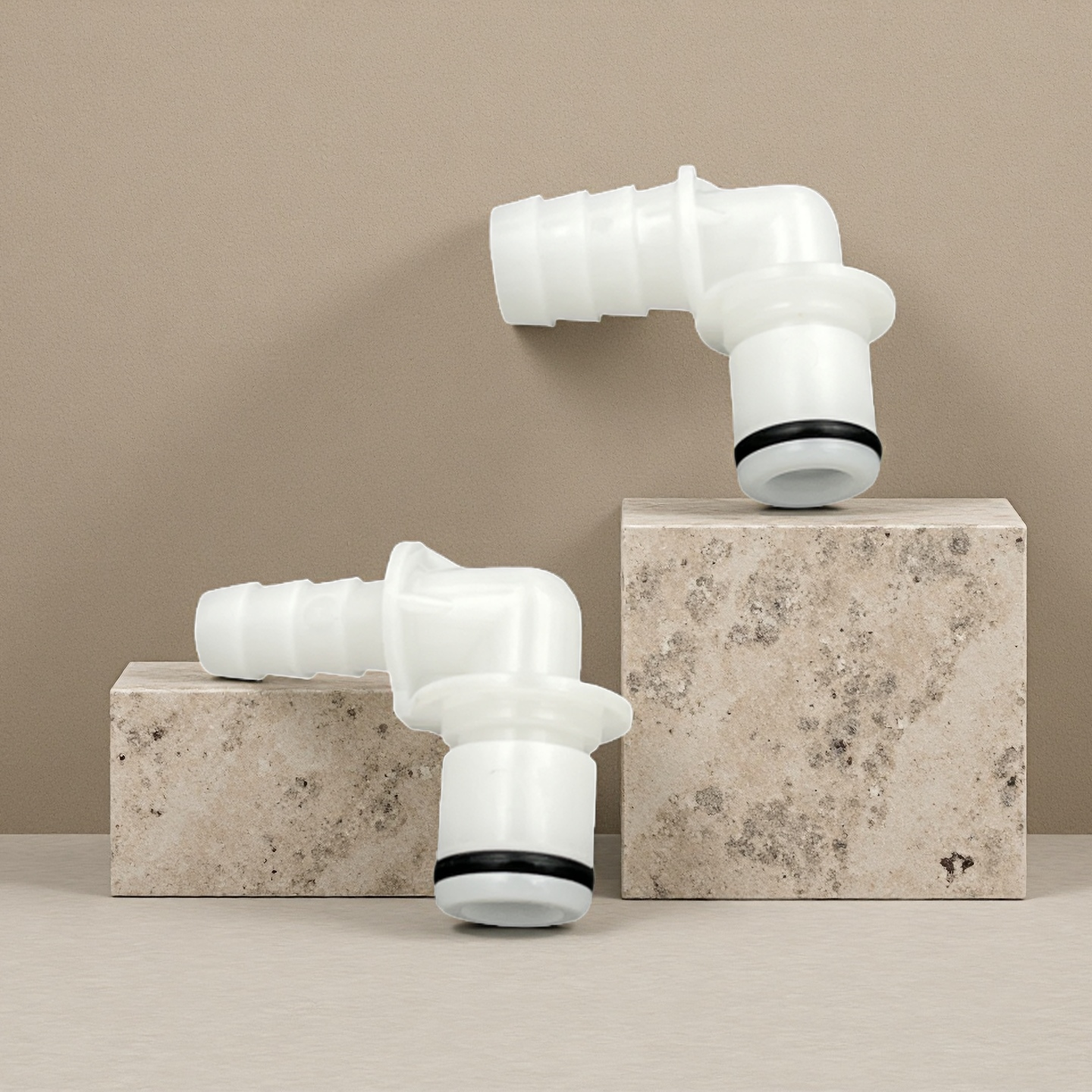

1/4'' 1/8'' 3/8'' 90 Degree Elbow Barbed Tube Fitting In-line Quick Coupling Male Insert POM Up To 120psi Liquids Pipe Fittings

1 / 5

1/4'' 1/8'' 3/8'' 90 Degree Elbow Barbed Tube Fitting In-line Quick Coupling Male Insert POM Up To 120psi Liquids Pipe Fittings

Send Inquiry

Product Description

Product Name	1/4'' 1/8'' 3/8'' 90 Degree Elbow Barbed Tube Fitting In-line Quick Coupling Male Insert Non-Valved for Liquids Pipe Fittings
Body Material	POM (Acetal)/ Almond PP/ Grey PP/ ABS/ Stainless Steel/ Customizable
Body Color	Natural White/ Black/ Almond/ Grey/ Customizable
Tubing Size	1/16''ID/ 1/8''ID/ 3/16''ID/ 1/4''ID/ 1/16''ID/ 3/8''ID /5/16''ID
O-ring Material	Buna-N /EPDM/FKM/Silicone/ Customizable
Spring/ Pin/ Thumb Latch	Stainless Steel
Temperature Range	-40°F - 180°F
Operating Pressure	Vacuum to 120psi (8.3 bar)
Valve Option	Valved (Shut-off) or Non-valved (Straight Through)
Option	In-line/ Panel Mount/ Elbow/ NPT BSPT Threaded/ PTF

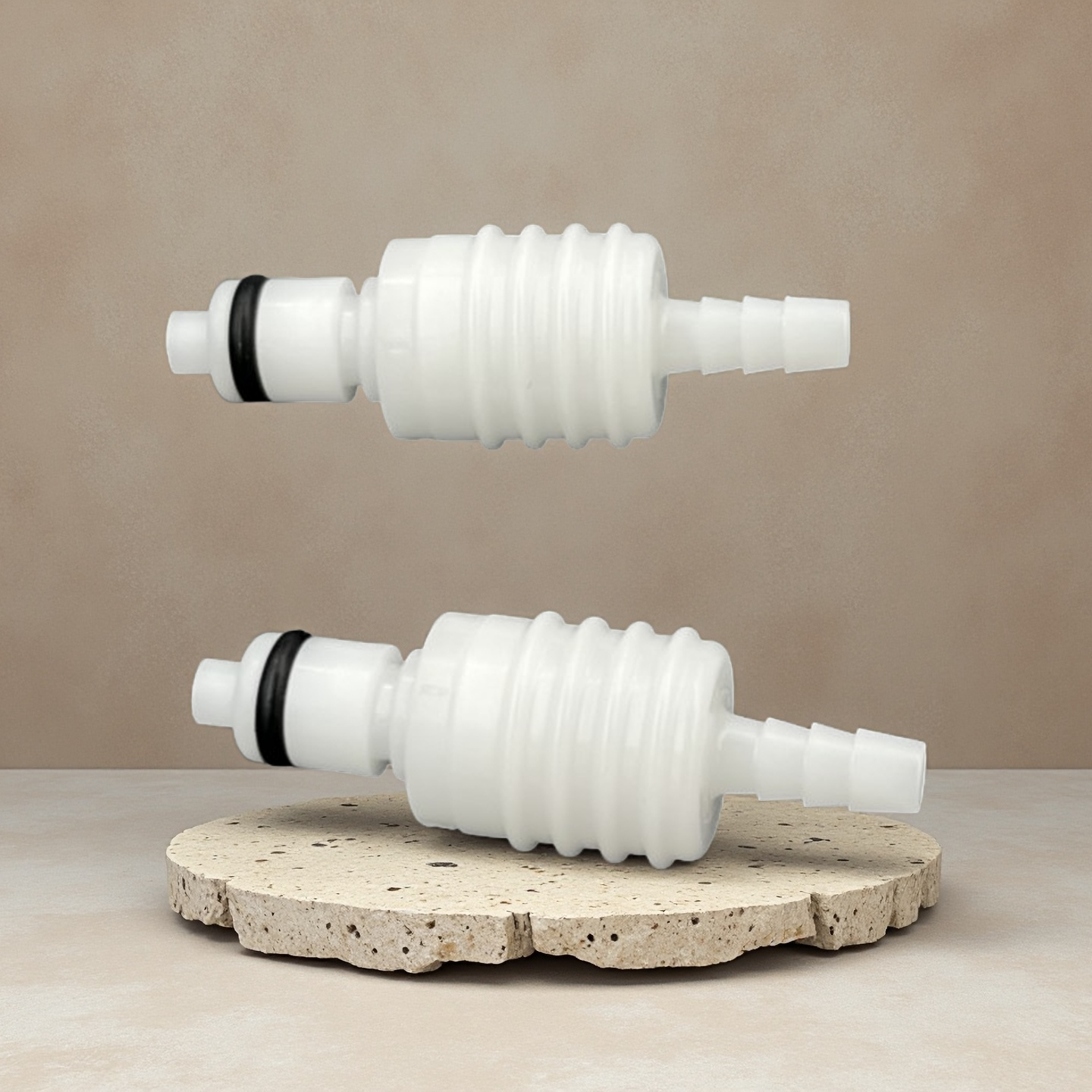

1/8'' Flow Size (Shut Off/Valved)

1/8'' flow size valved plug includes the following dimensions:
1) 1/16'' ID=PACV2002B01
2) 1/8'' ID=PACV2002B02
3) 3/16'' ID=PACV2002B03
4) 1/4'' ID=PACV2002B04

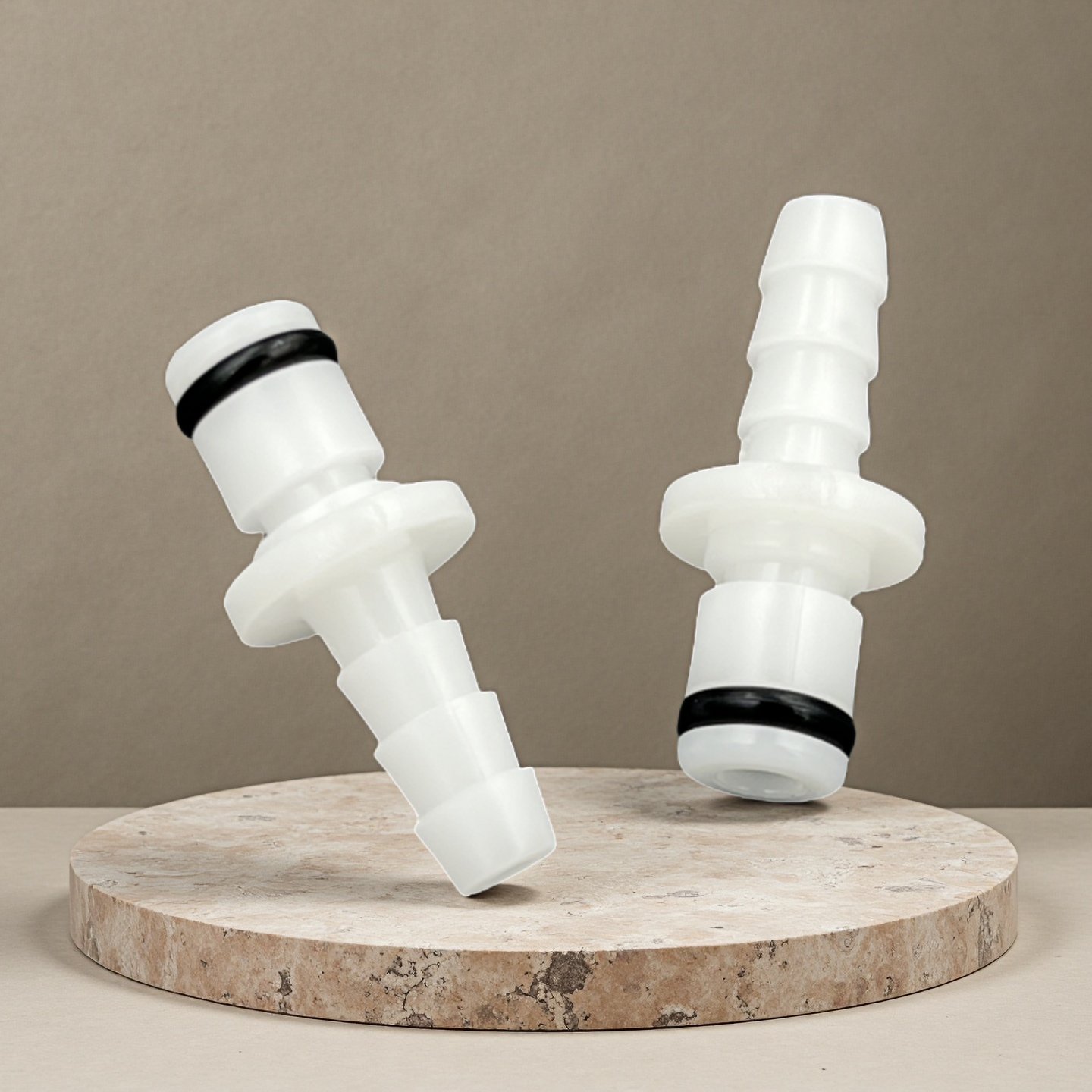

1/8'' Flow Size (Straight Through/Non-valved)

1/8'' flow size Non-valved plug includes the following dimensions:
1) 1/16'' ID=PACR2002B01
2) 1/8'' ID=PACR2002B02
3) 3/16'' ID=PACR2002B03
4) 1/4'' ID=PACR2002B04

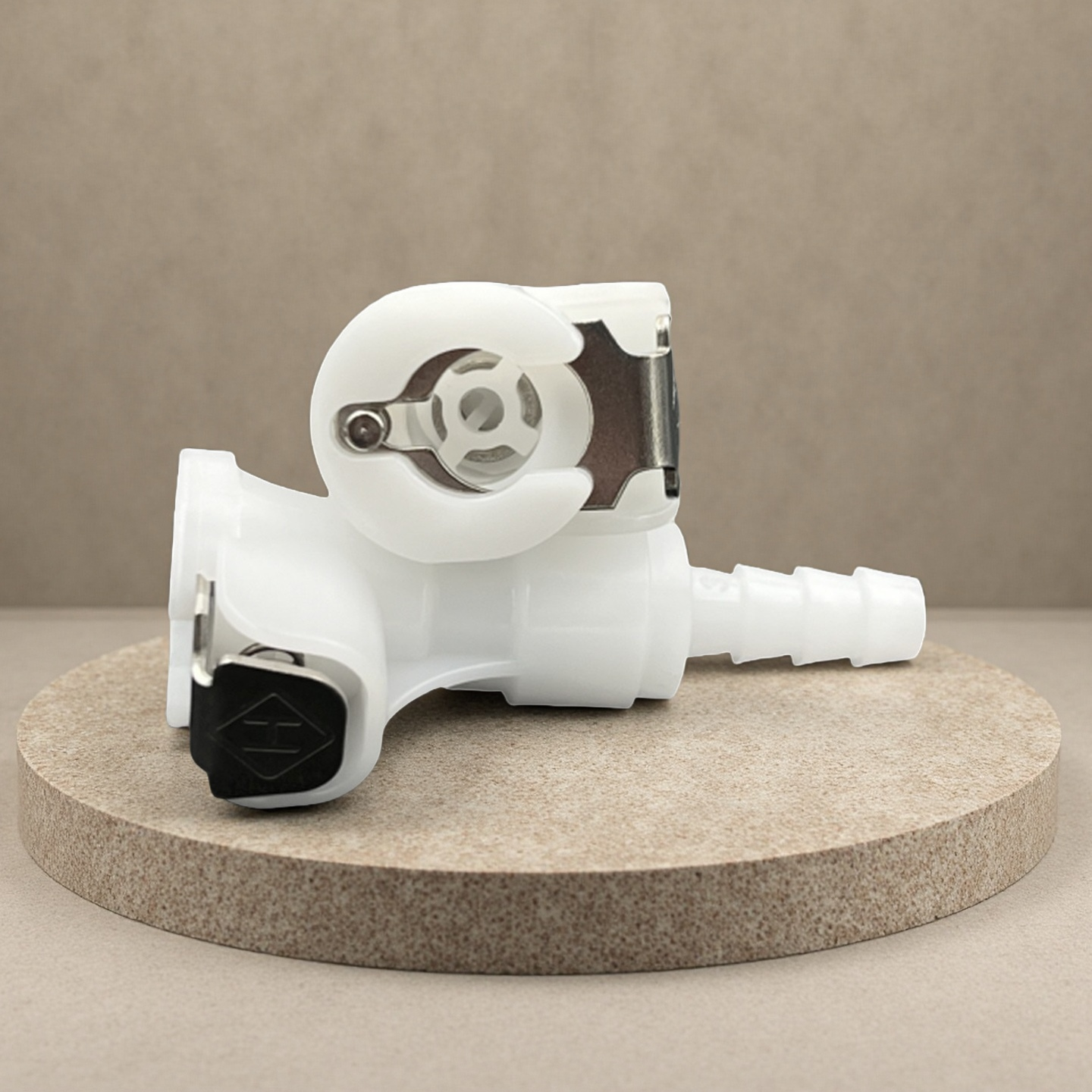

1/8'' Flow Size (Shut off/Valved)

1/8'' flow size valved socket includes the following dimensions:
1) 1/16'' ID=SACV2002B01
2) 1/8'' ID=SACV2002B02
3) 3/16'' ID=SACV2002B03
4) 1/4'' ID=SACV2002B04

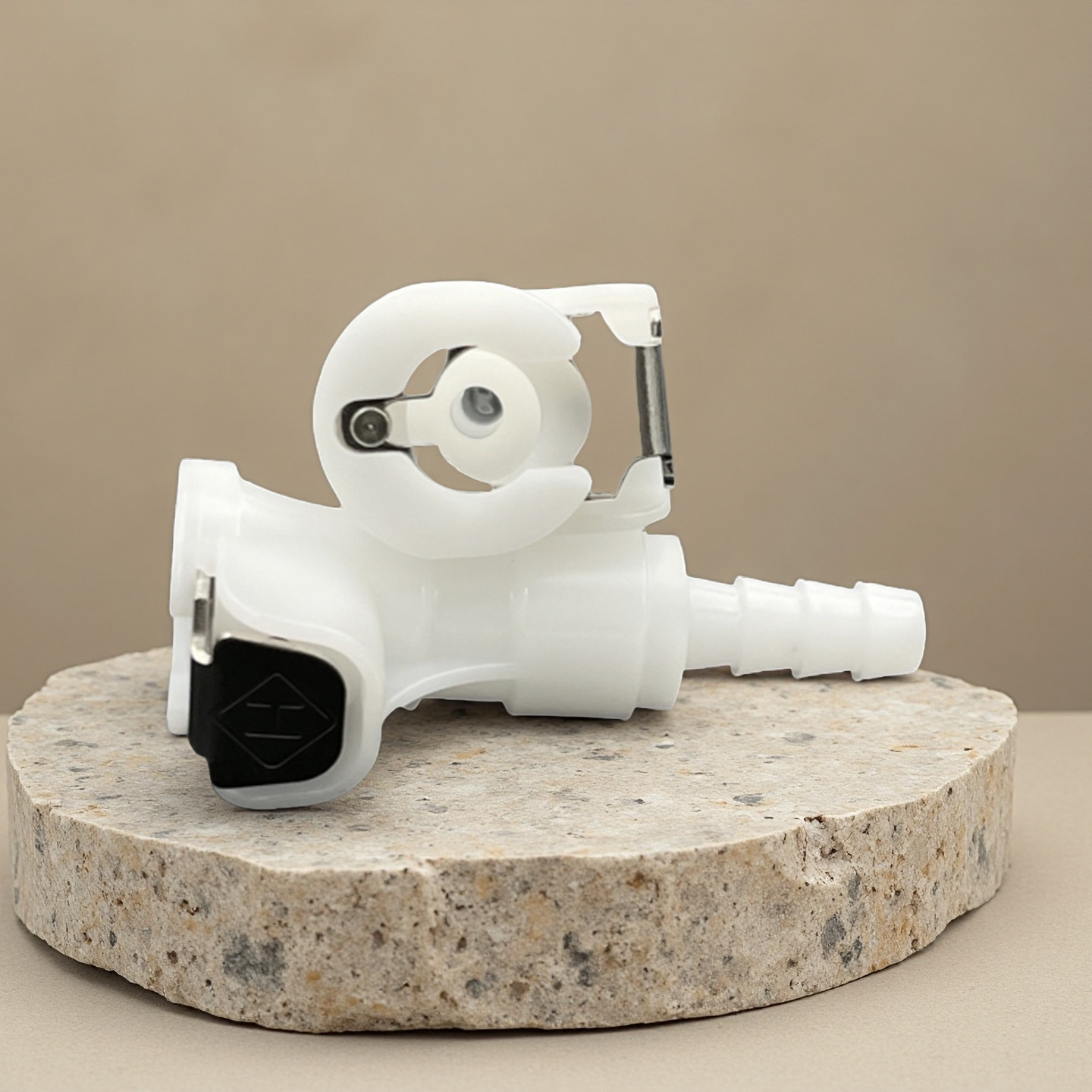

1/8'' Flow Size (Straight Through/Non-valved)

1/8'' flow size non-valved socket includes the following dimensions:
1) 1/16'' ID=SACR2002B01
2) 1/8'' ID=SACR2002Z02
3) 3/16'' ID=SACR2002Z03
4) 1/4'' ID=SACR2002Z04

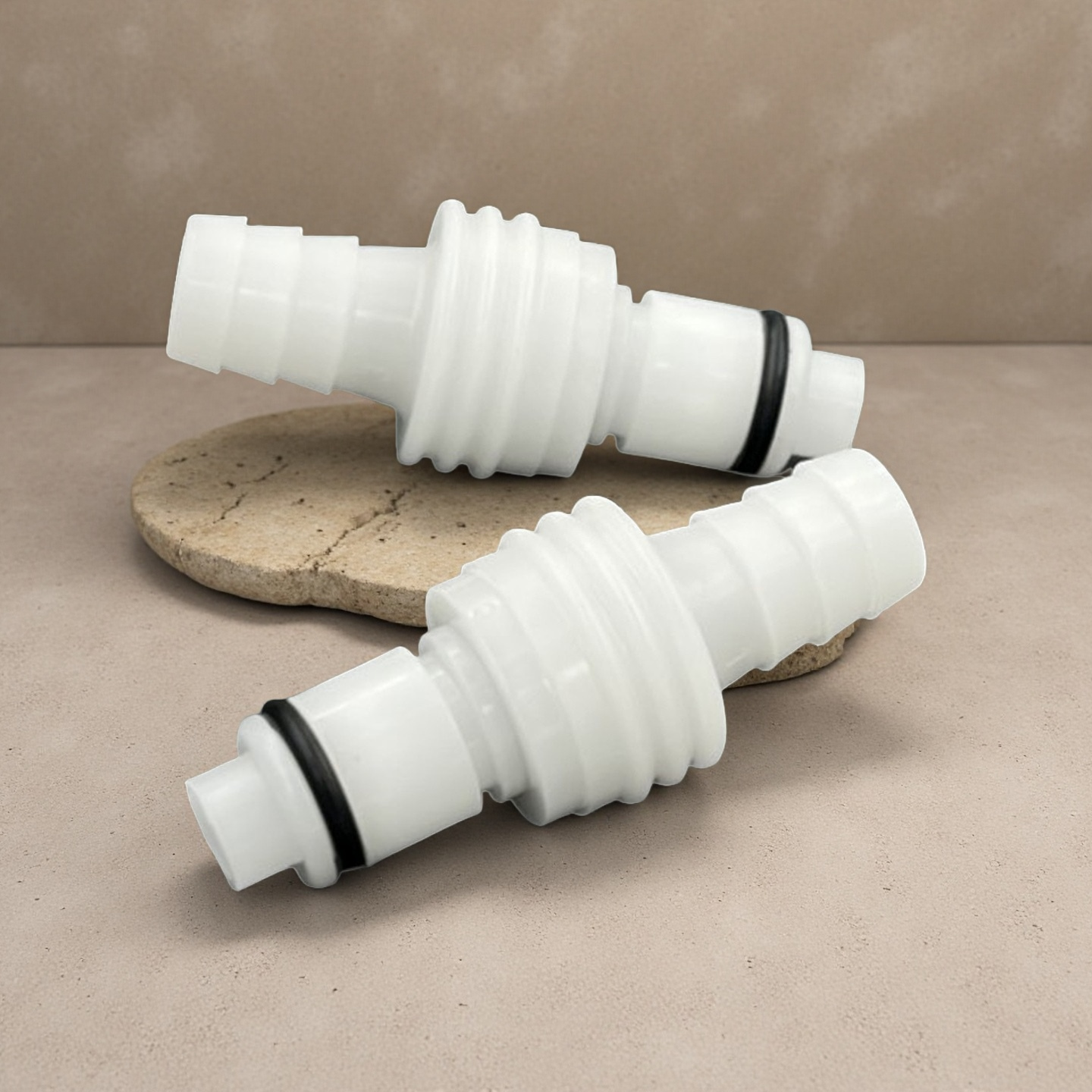

1/4'' Flow Size (Shut off/Valved)

1/4'' flow size valved plug includes the following dimensions:
1) 1/4'' ID=PACV4002B04
2) 5/16'' ID=PACV4002B05
3) 3/8'' ID=PACV4002B06

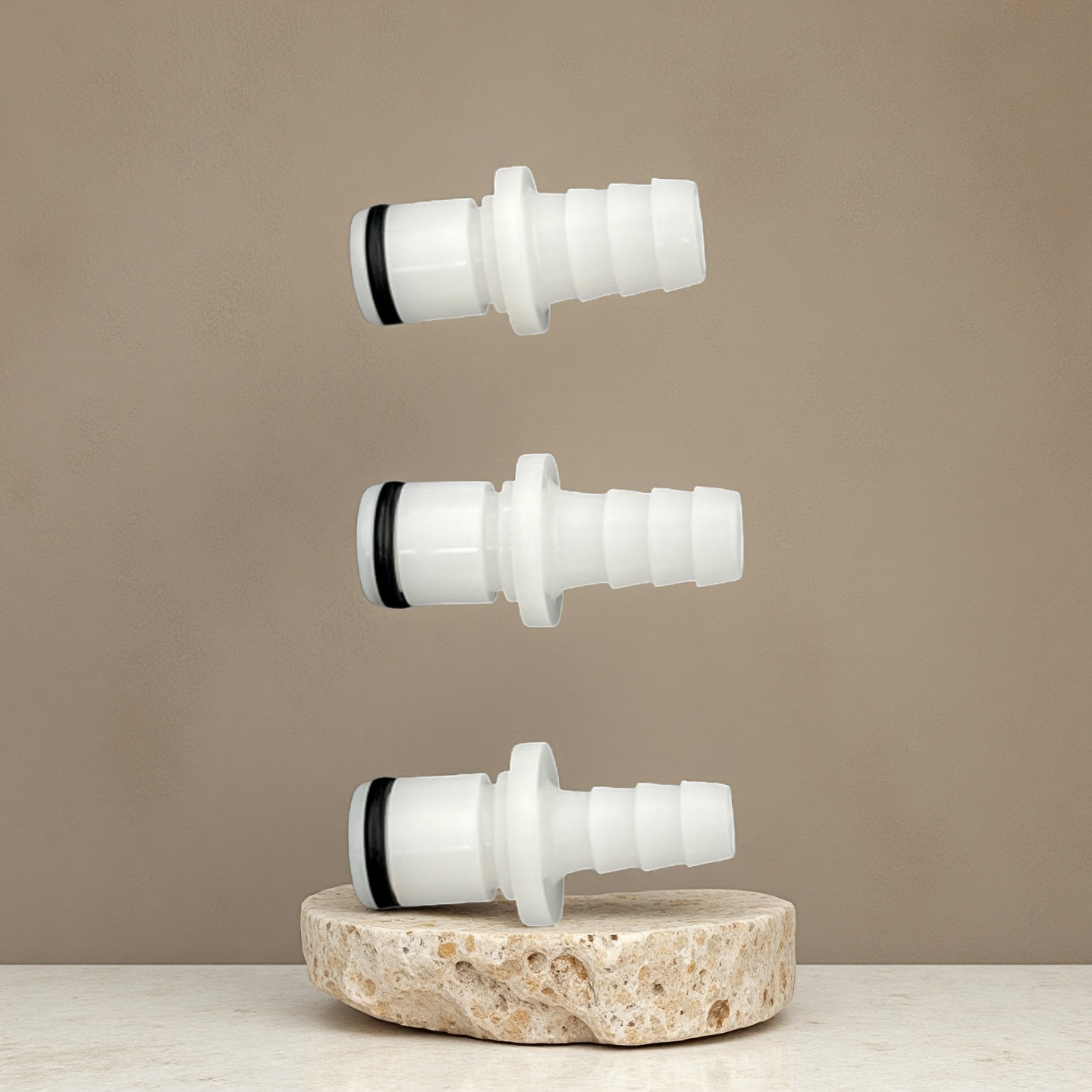

1/4'' Flow Size (Straight Through/Non-valved)

1/4'' flow size non-valved plug includes the following dimensions:
1) 1/4'' ID=PACR4002B04
2) 5/16'' ID=PACR4002B05
3) 3/8'' ID=PACR4002B06

1/4'' Flow Size (Shut off/Valved)

1/4'' flow size valved socket includes the following dimensions:
1) 1/4'' ID=SACV4002B04
2) 5/16'' ID=SACV4002B05
3) 3/8'' ID=SACV4002B06

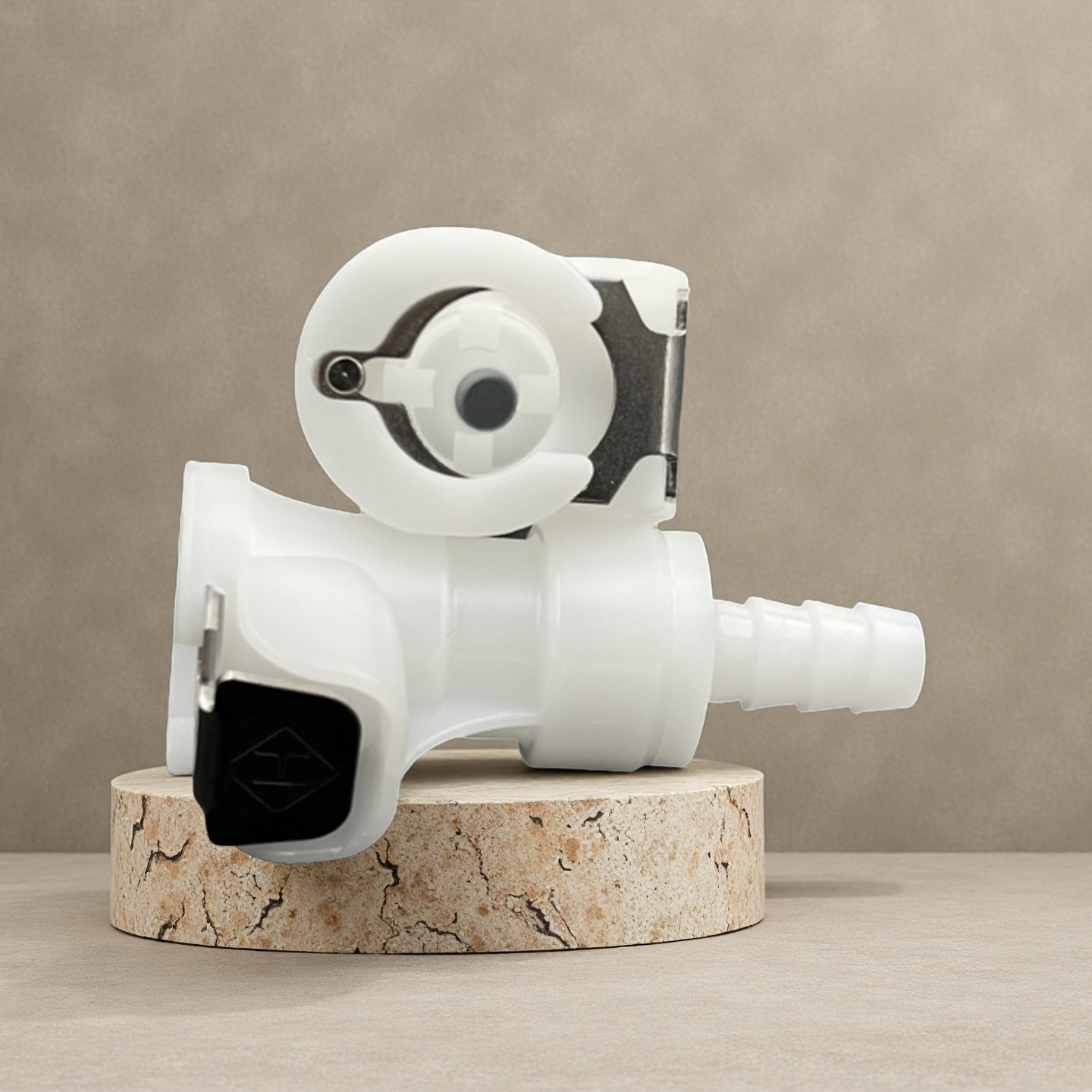

1/4'' Flow Size (Straight Through/Non-valved)

1/4'' flow size non-valved socket includes the following dimensions:
1) 1/4'' ID=SACR4002Z04
2) 5/16'' ID=SACR4002Z05
3) 3/8'' ID=SACR4002Z06

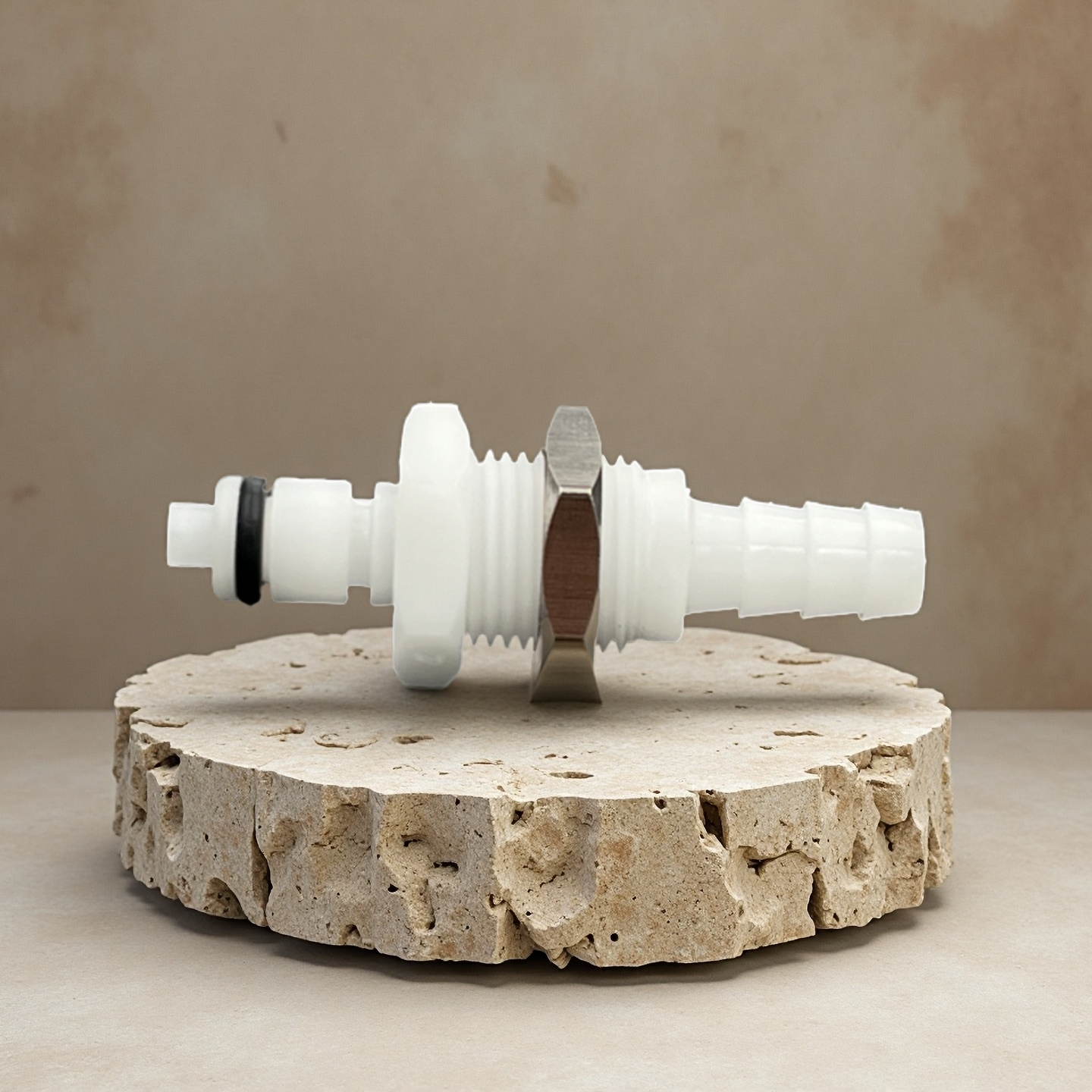

1/8'' Flow Size (Shut off/Valved)

1/8'' flow size Panel-mount valved plug includes the following dimensions:
1) 1/16'' ID=PACV2003B01
2) 1/8'' ID=PACV2003B02
3) 3/16'' ID=PACV2003B03
4) 1/4'' ID=PACV2003B04

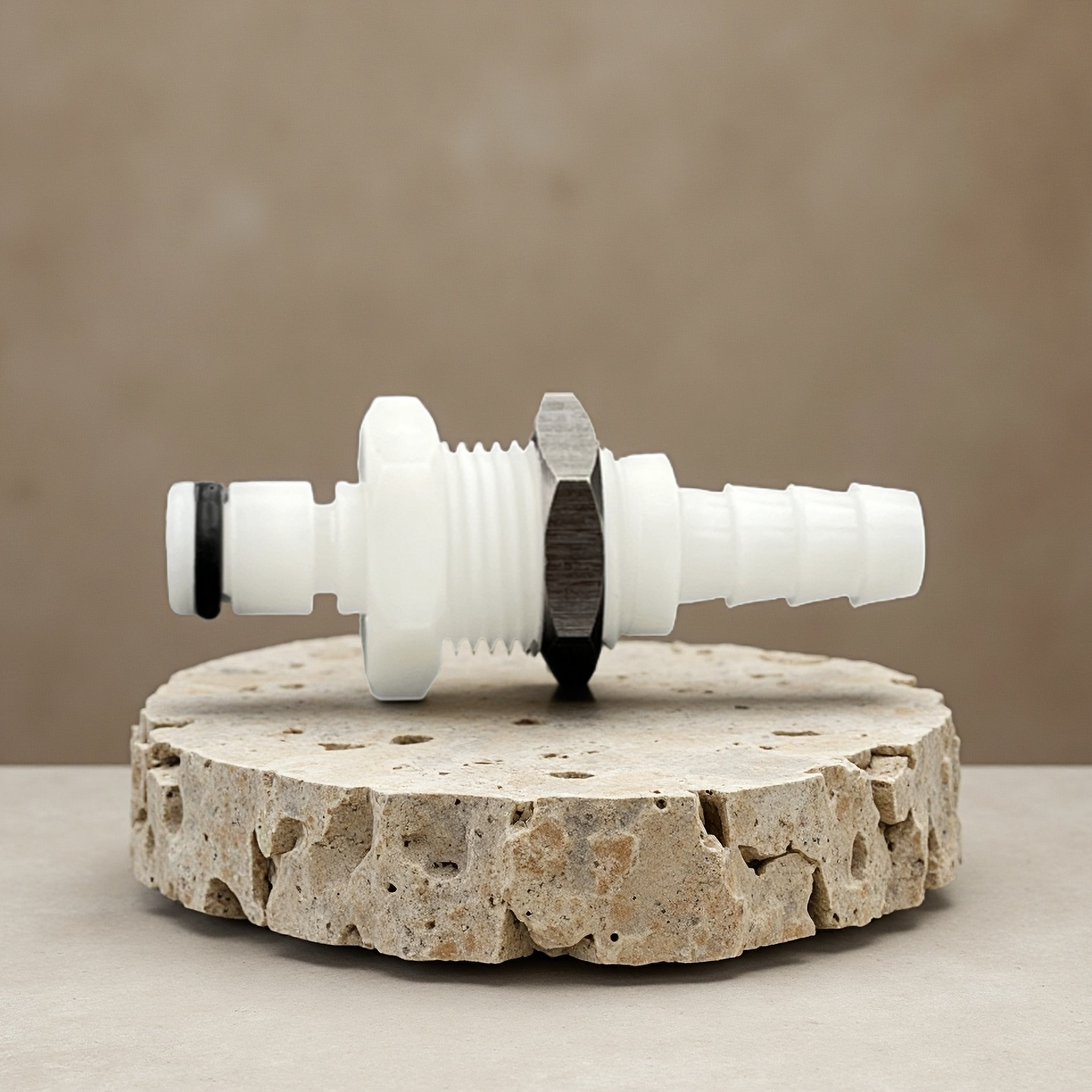

1/8'' Flow Size (Straight Through/Non-valved)

1/8'' flow size Panel-mount Non-valved plug includes the following dimensions:
1) 1/16'' ID=PACR2003B01
2) 1/8'' ID=PACR2003B02
3) 3/16'' ID=PACR2003B03
4) 1/4'' ID=PACR2003B04

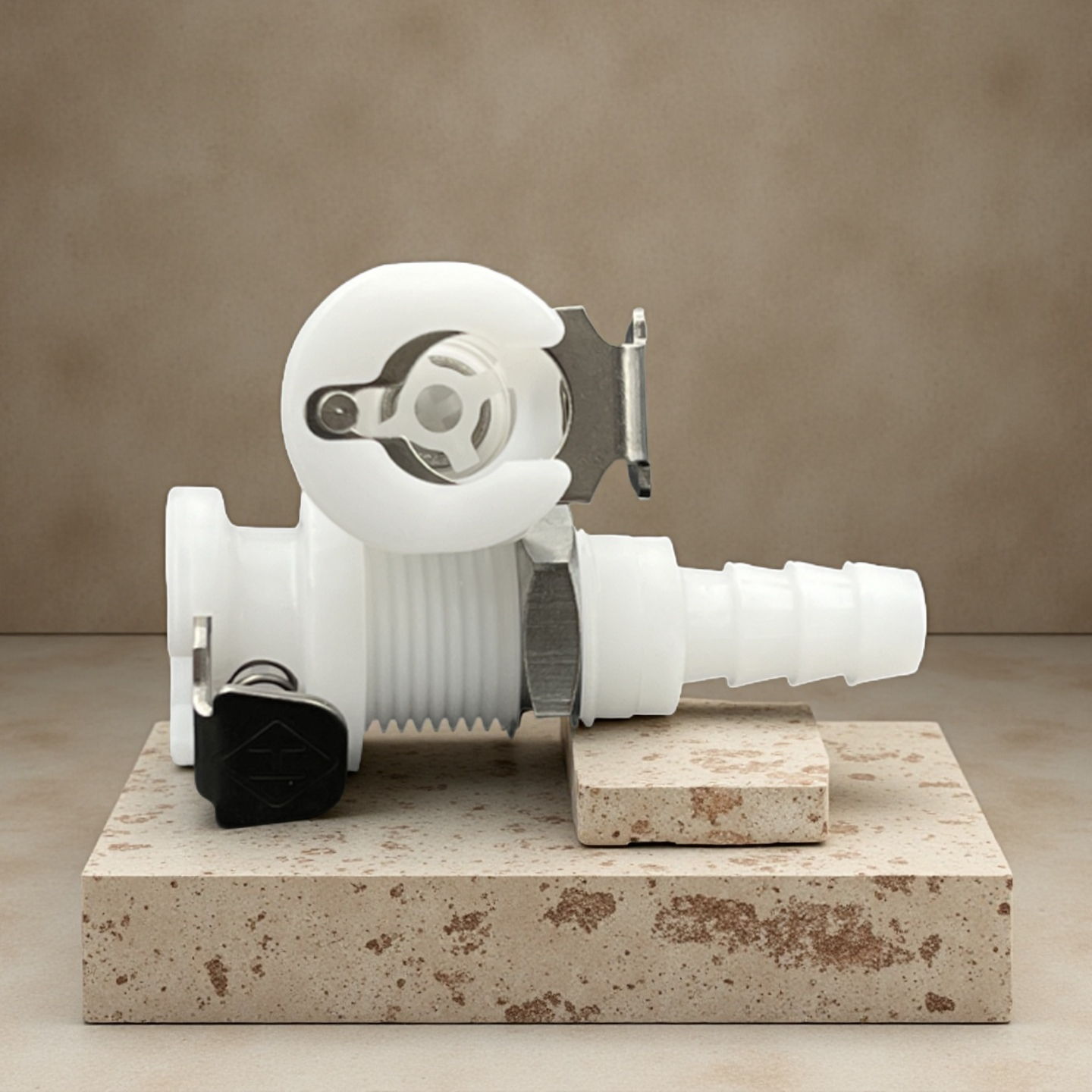

1/8'' Flow Size (Shut off/Valved)

1/8'' flow size Panel-mount valved socket includes the following dimensions:
1) 1/16'' ID=SACV2003B01
2) 1/8'' ID=SACV2003B02
3) 3/16'' ID=SACV2003B03
4) 1/4'' ID=SACV2003B04

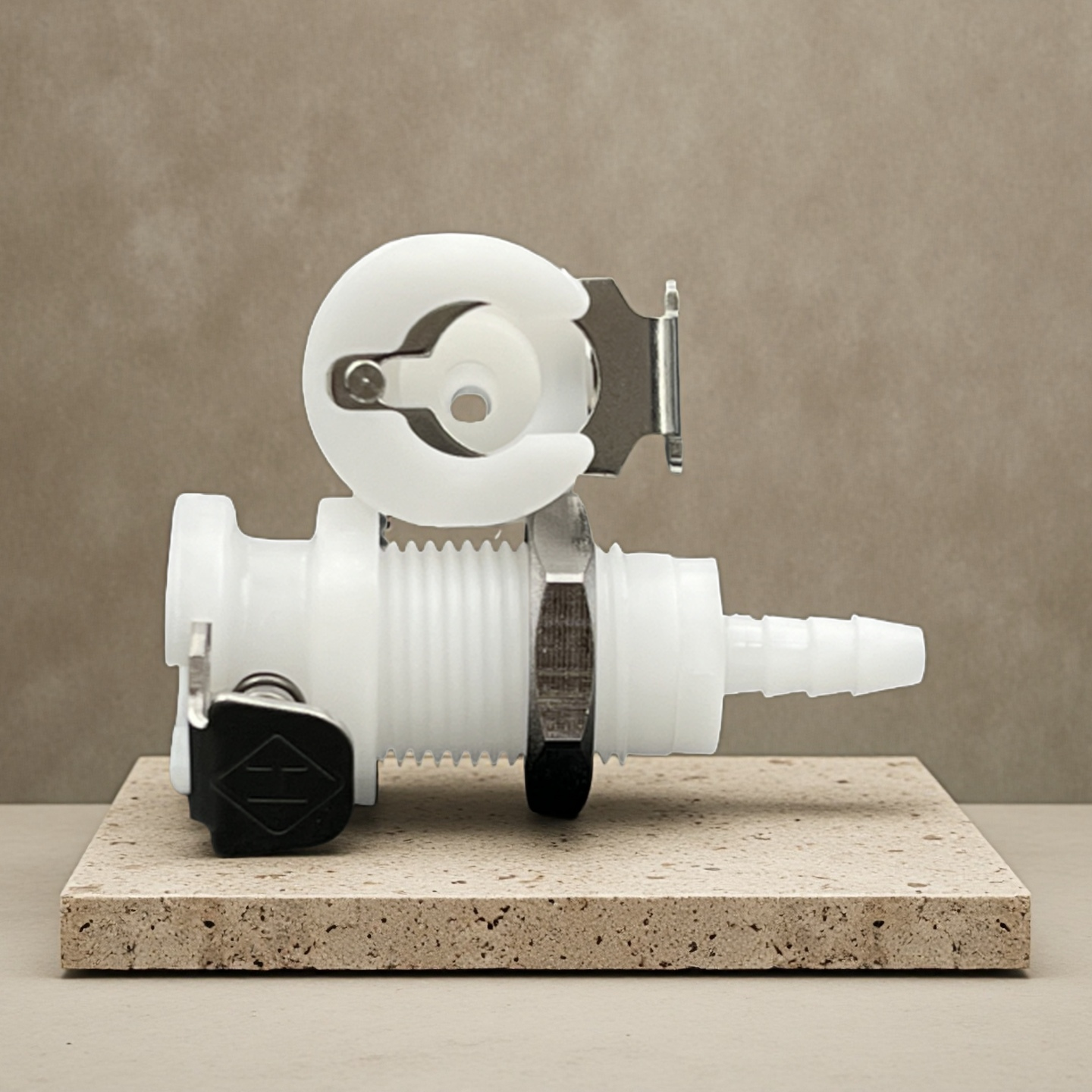

1/8'' Flow Size (Straight Through/Non-valved)

1/8'' flow size Panel-mount non-valved socket includes the following dimensions:
1) 1/16'' ID=SACR2003Z01
2) 1/8'' ID=SACR2003Z02
3) 3/16'' ID=SACR2003Z03
4) 1/4'' ID=SACR2003Z04

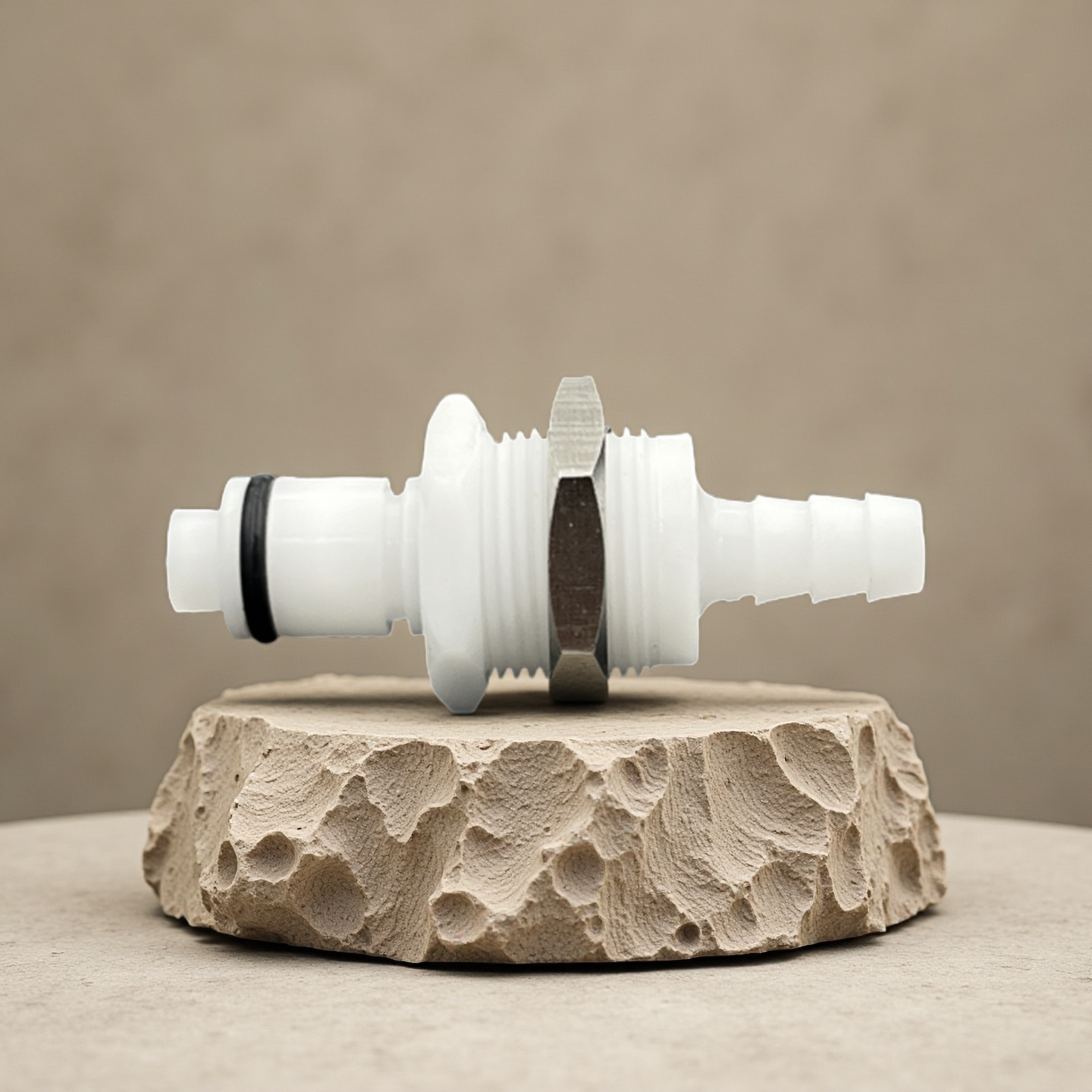

1/4'' Flow Size (Shut off/Valved)

1/4'' flow size Panel-mount valved plug includes the following dimensions:
1) 1/4'' ID=PACV4003B04
2) 5/16'' ID=PACV4003B05
3) 3/8'' ID=PACV4003B06

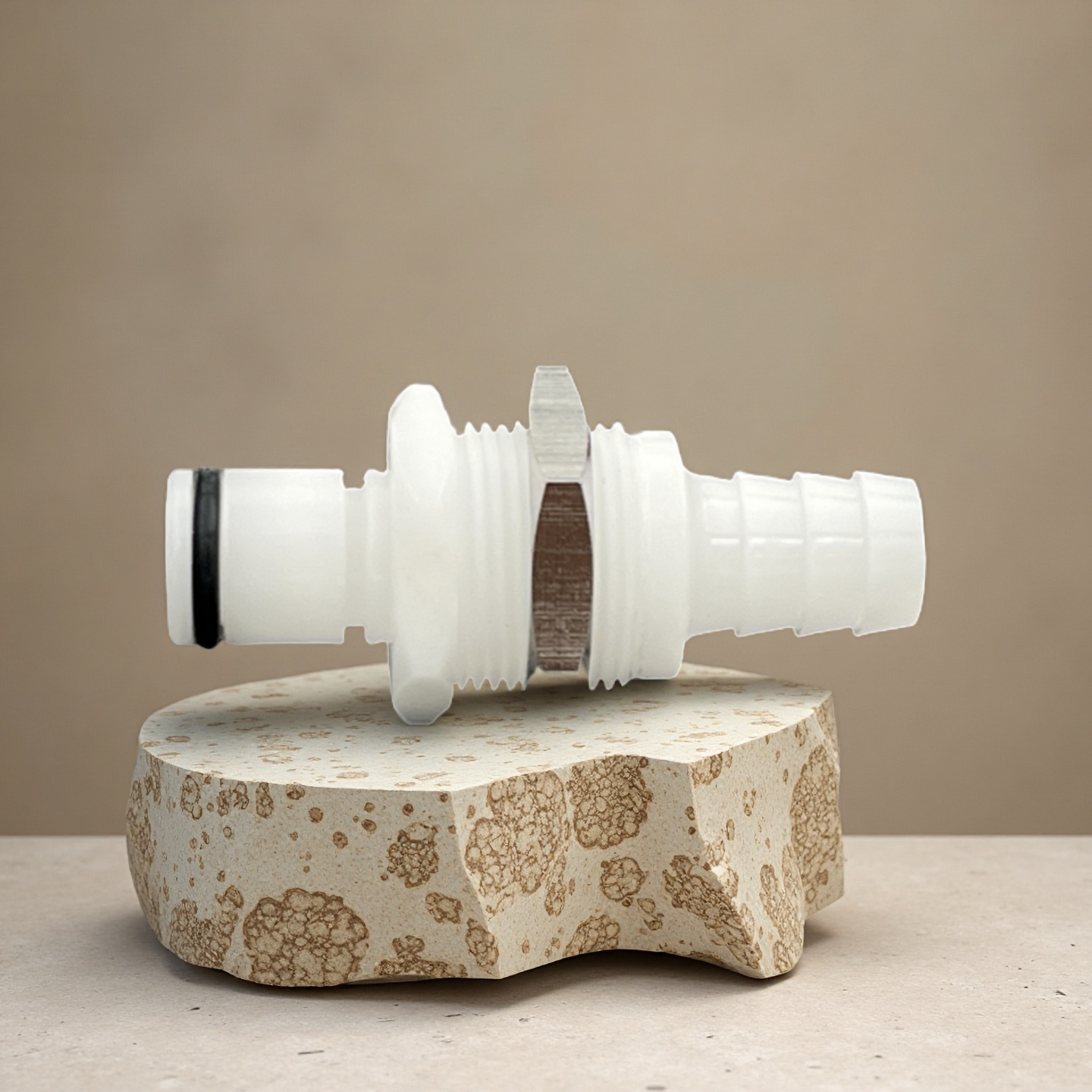

1/4'' Flow Size (Straight Through/Non-valved)

1/4'' flow size Panel-mount non-valved plug includes the following dimensions:
1) 1/4'' ID=PACR4003B04
2) 5/16'' ID=PACR4003B05
3) 3/8'' ID=PACR4003B06

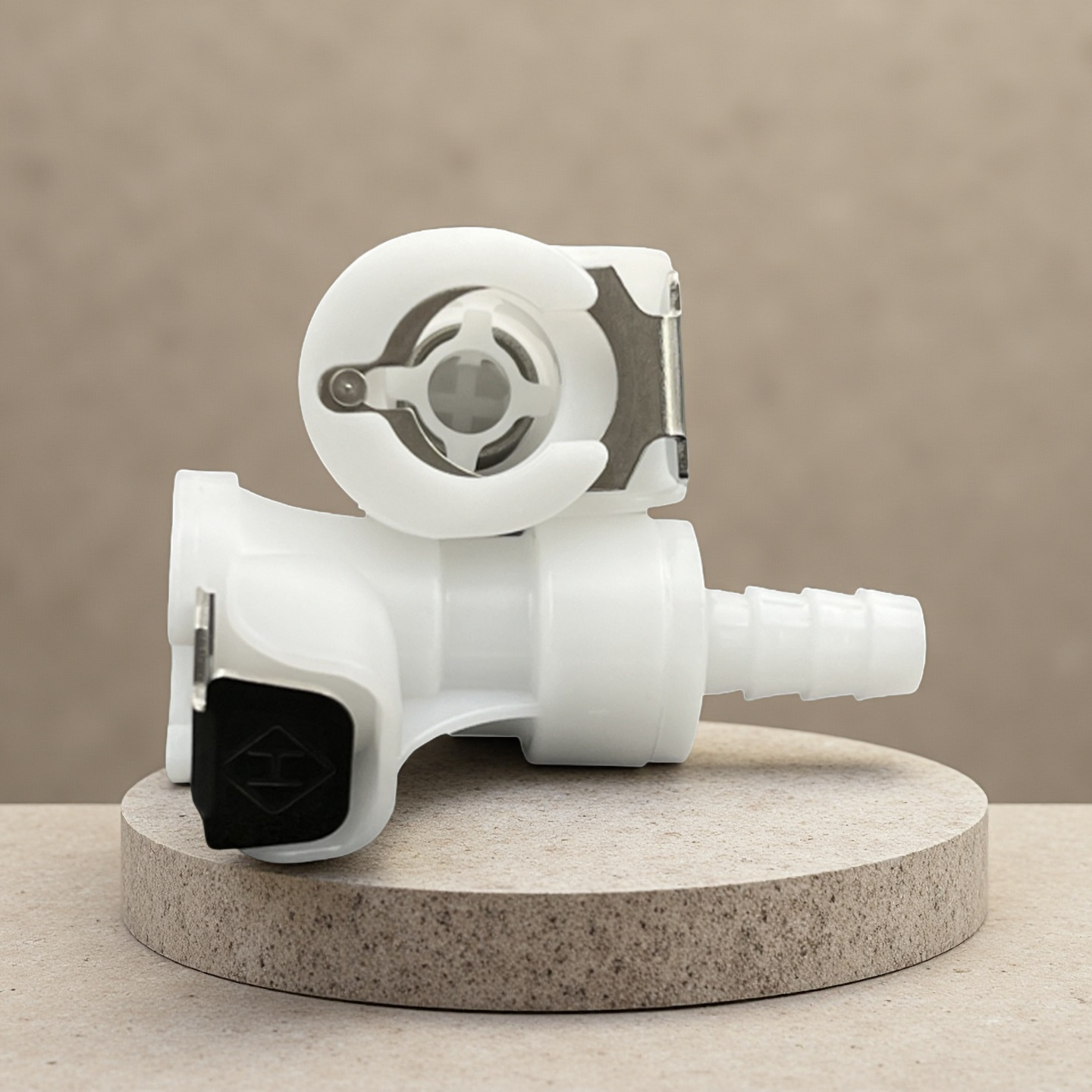

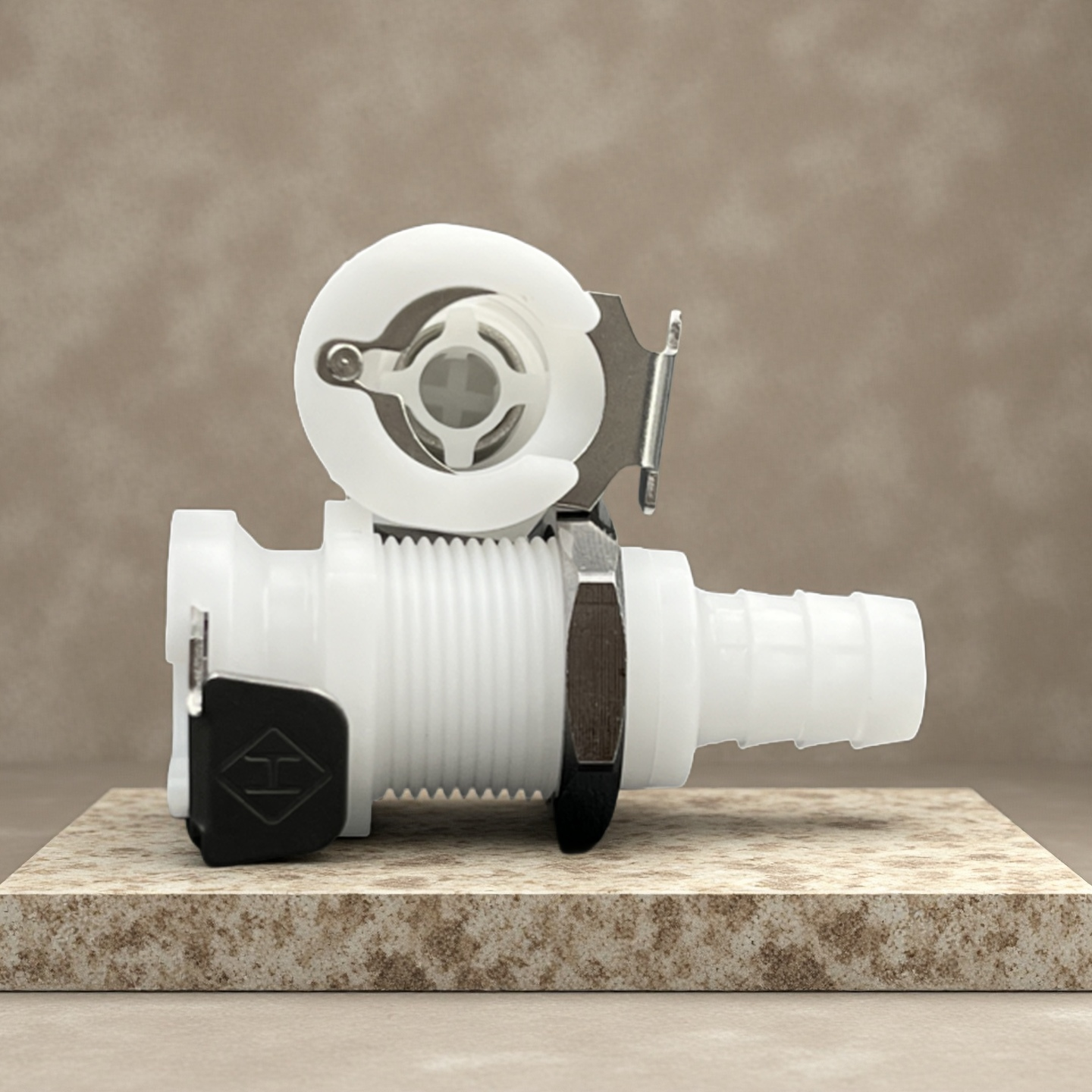

1/4'' Flow Size (Shut off/Valved)

1/4'' flow size Panel-mount valved socket includes the following dimensions:
1) 1/4'' ID=SACV4003B04
2) 5/16'' ID=SACV4003B05
3) 3/8'' ID=SACV4003B06

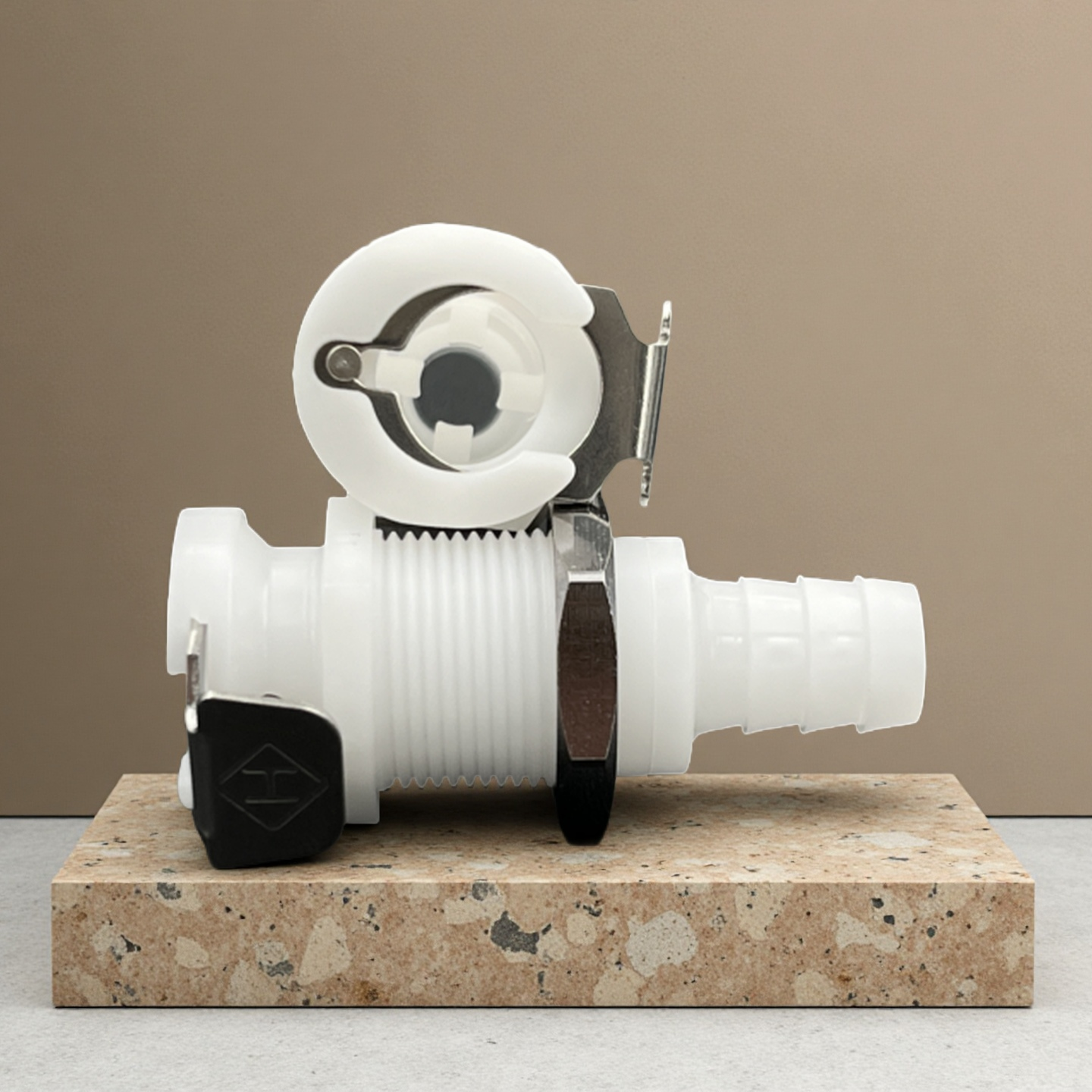

1/4'' Flow Size (Straight Through/Non-valved)

1/4'' flow size Panel-mount non-valved socket includes the following dimensions:
1) 1/4'' ID=SACR4003Z04
2) 5/16'' ID=SACR4003Z05
3) 3/8'' ID=SACR4003Z06

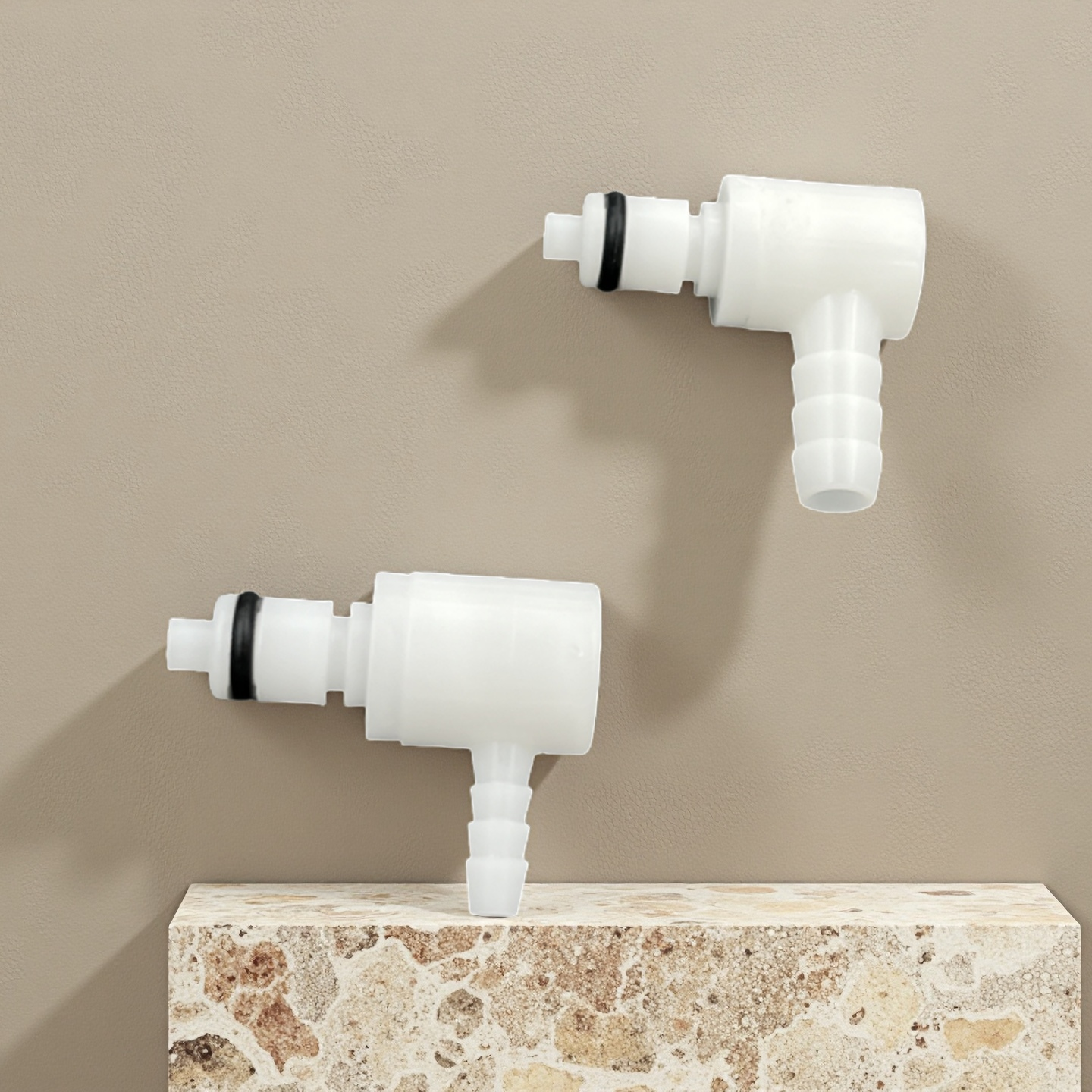

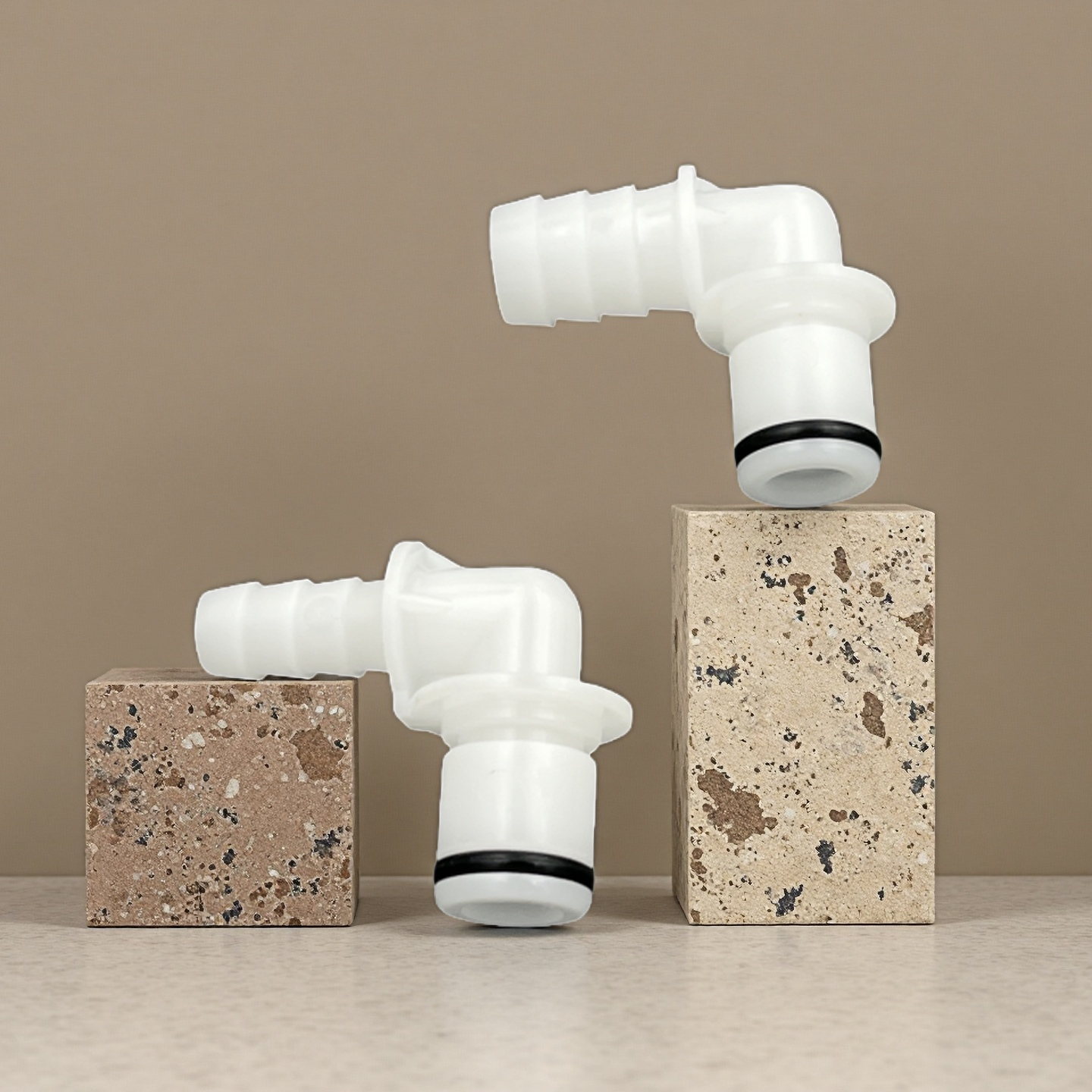

1/8'' Flow Size (Shut Off/Valved)

1/8'' flow size Elbow valved plug includes the following dimensions:
1) 1/8'' ID=PACV2004B02
2) 1/4'' ID=PACV2004B04

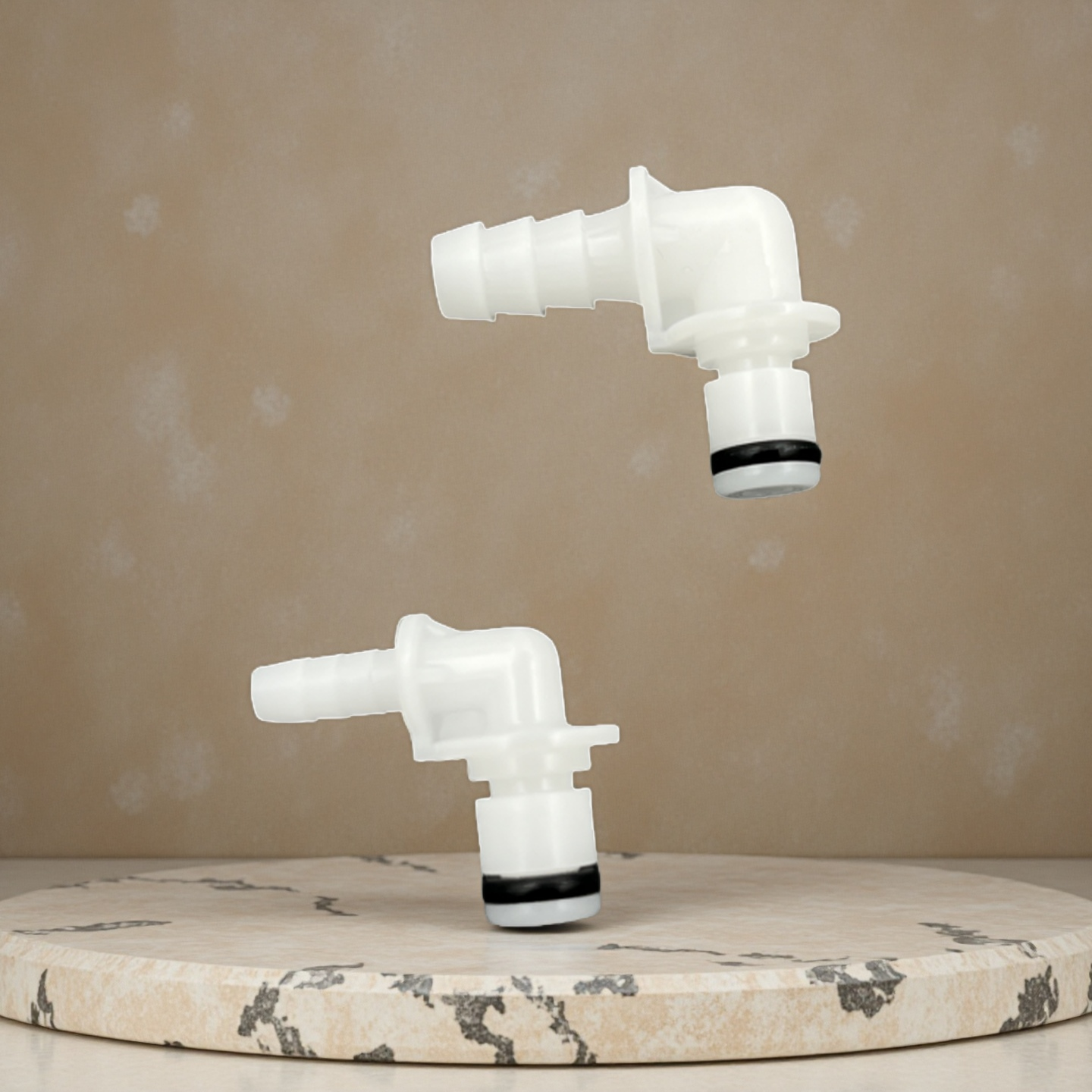

1/8'' Flow Size (Straight Through/Non-valved)

1/8'' flow size Elbow non-valved plug includes the following dimensions:
1) 1/8'' ID=PACR2004B02
2) 1/4'' ID=PACR2004B04

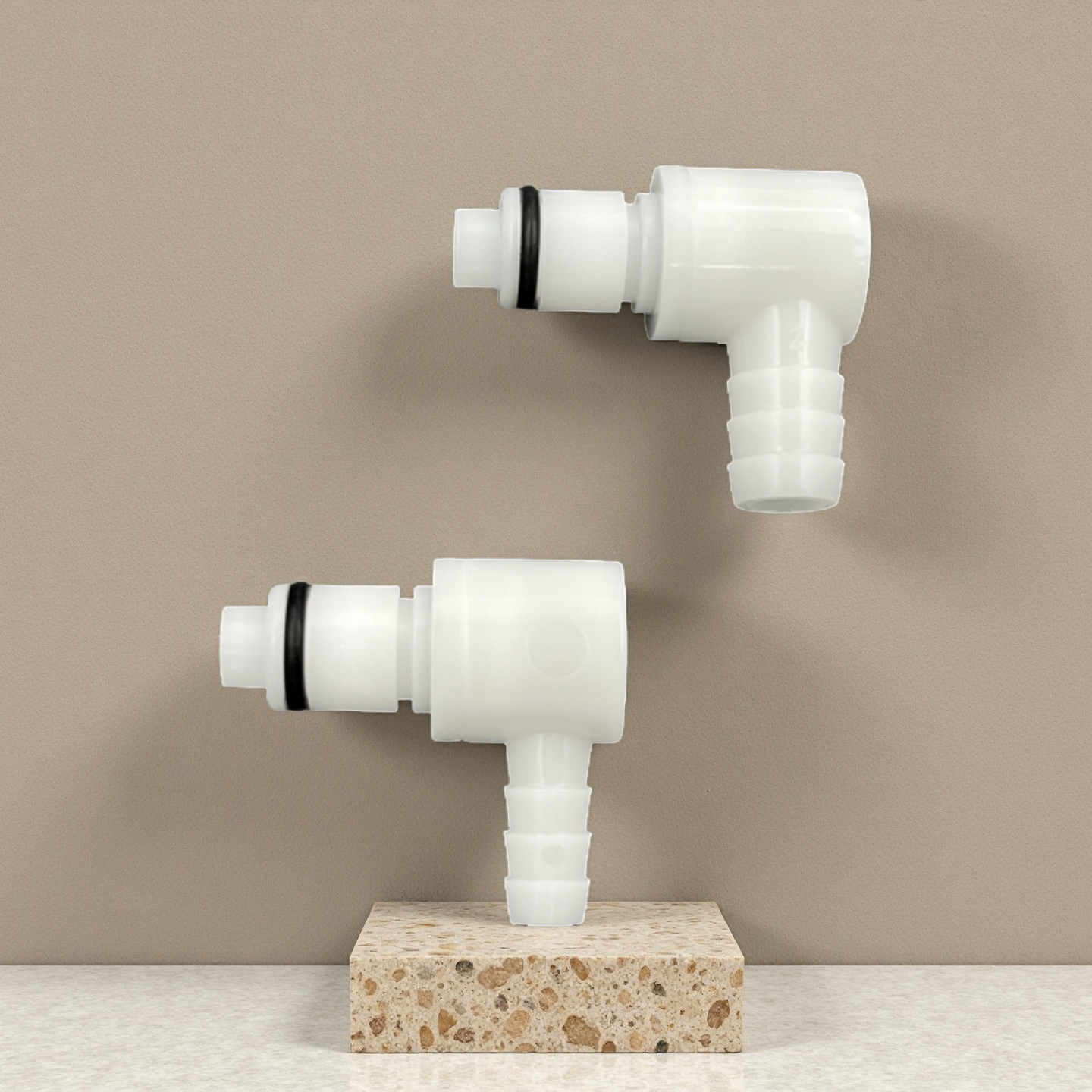

1/4'' Flow Size (Shut Off/Valved)

1/4'' flow size Elbow valved plug includes the following dimensions:
1) 1/4'' ID=PACV4004B04
2) 5/16'' ID=PACV4004B05
3) 3/8'' ID=PACV4004B06

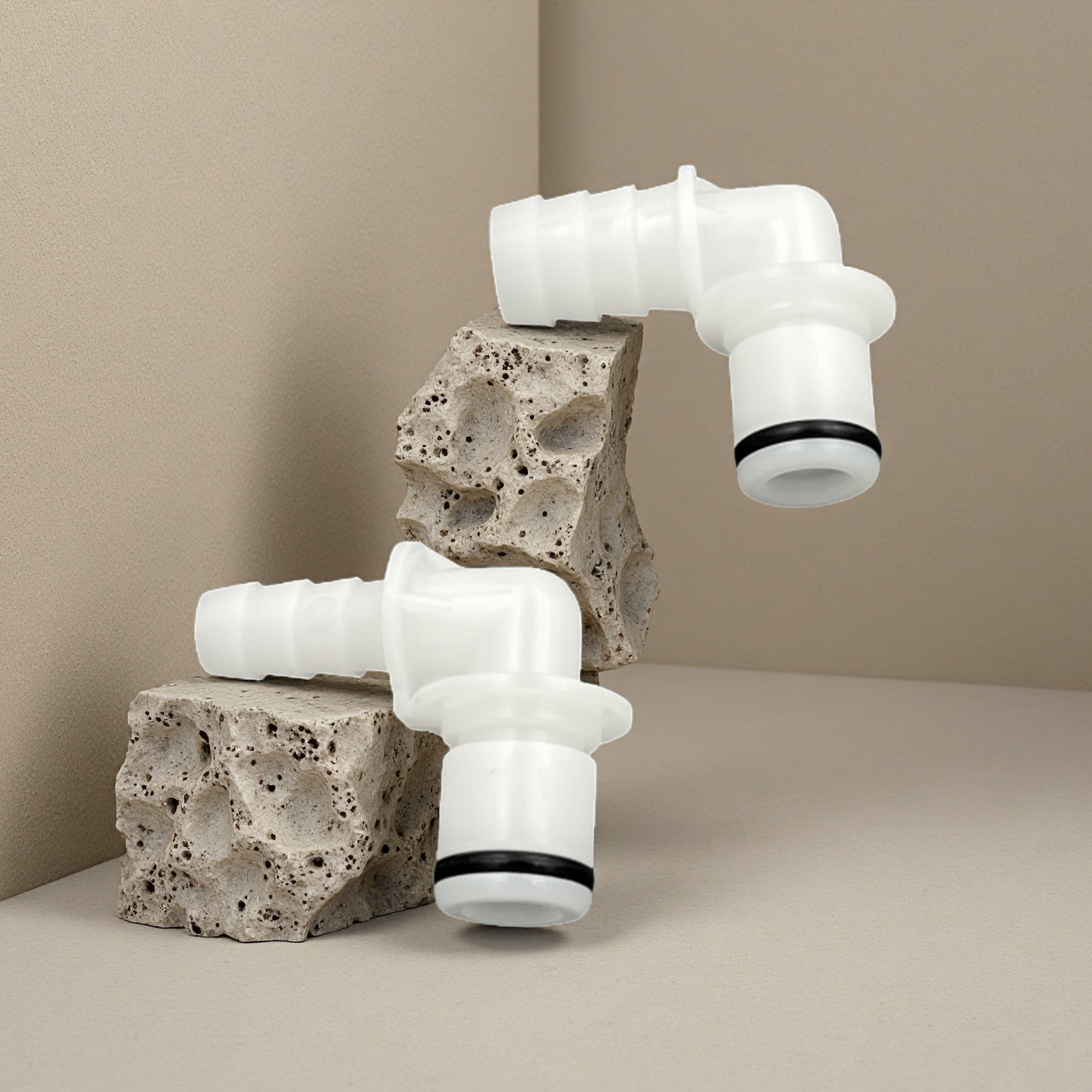

1/4'' Flow Size (Straight Through/Non-valved)

1/4'' flow size Elbow non-valved plug includes the following dimensions:
1) 1/4'' ID=PACR4004B04
2) 5/16'' ID=PACR4004B05
3) 3/8'' ID=PACR4004B06

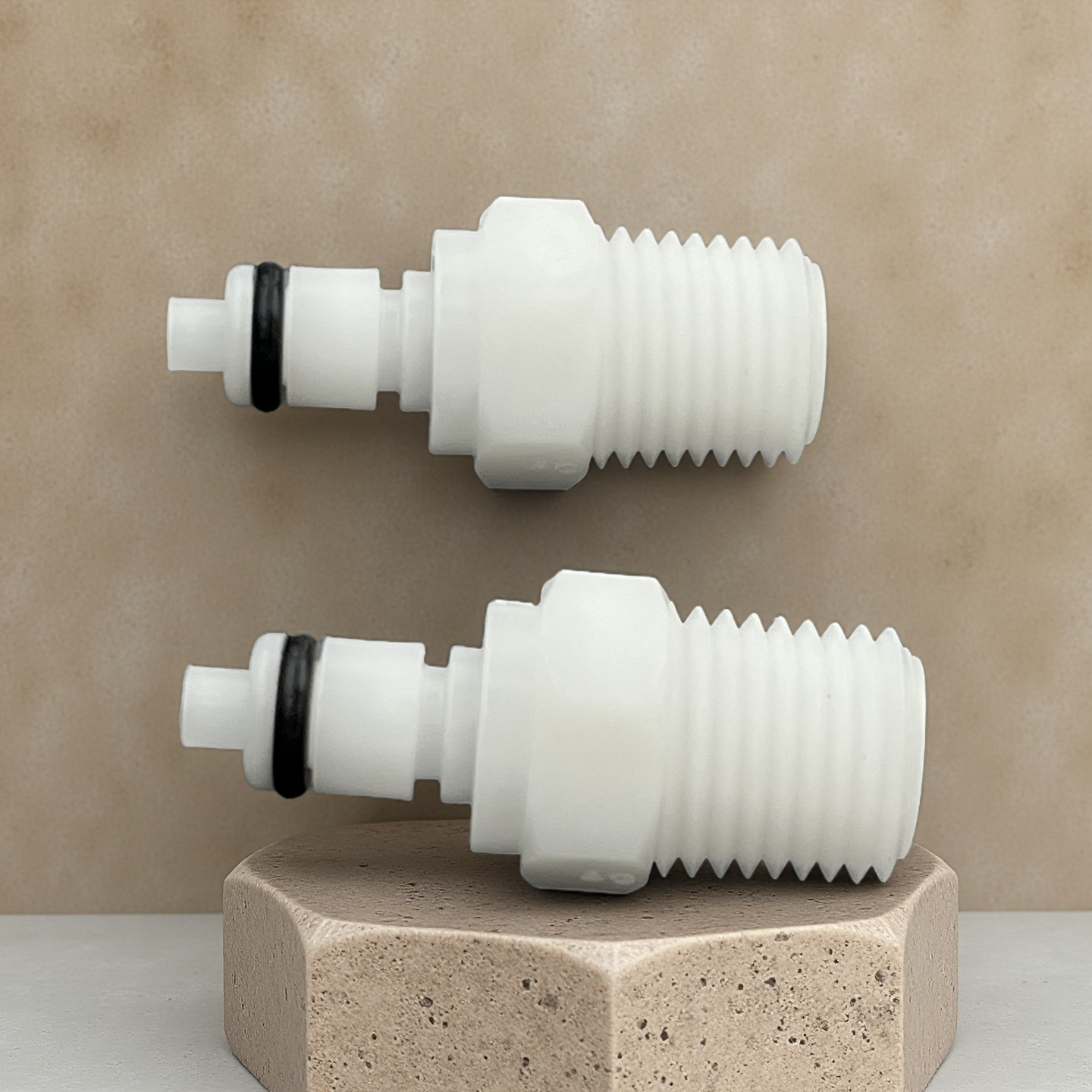

1/8'' Flow Size (Shut Off/Valved)

1/8'' flow size male thread valved plug includes the following dimensions:
1) 1/8'' NPT=PACV2001B02
2) 1/8'' BSPT=PACV2001B02BSPT
3) 1/4'' NPT=PACV2001B04
4) 1/4'' BSPT=PACV2001B04BSPT

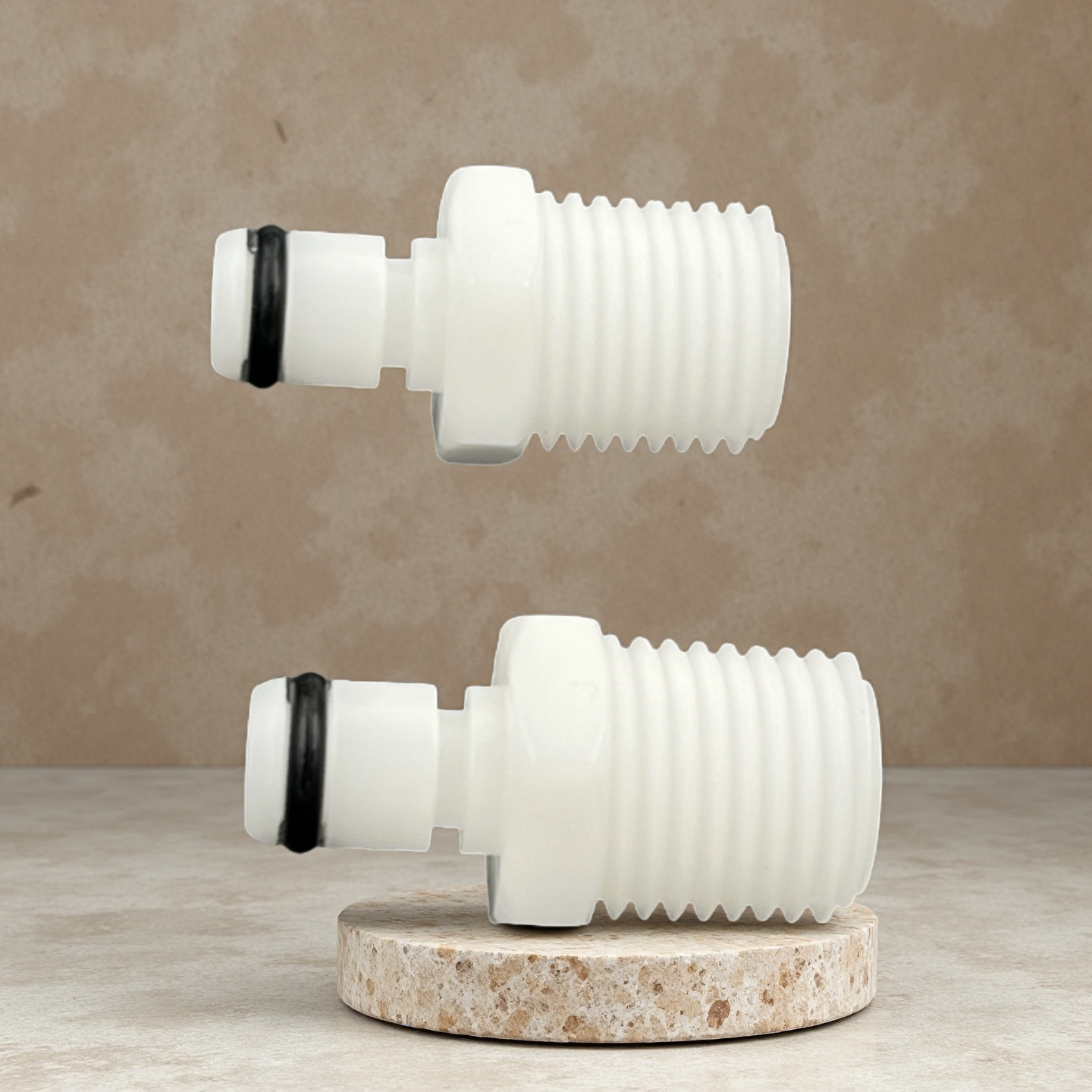

1/8'' Flow Size (Straight Through/Non-valved)

1/8'' flow size male thread non-valved plug includes the following dimensions:
1) 1/8'' NPT=PACR2001B02
2) 1/8'' BSPT=PACR2001B02BSPT
3) 1/4'' NPT=PACR2001B04
4) 1/4'' BSPT=PACR2001B04BSPT

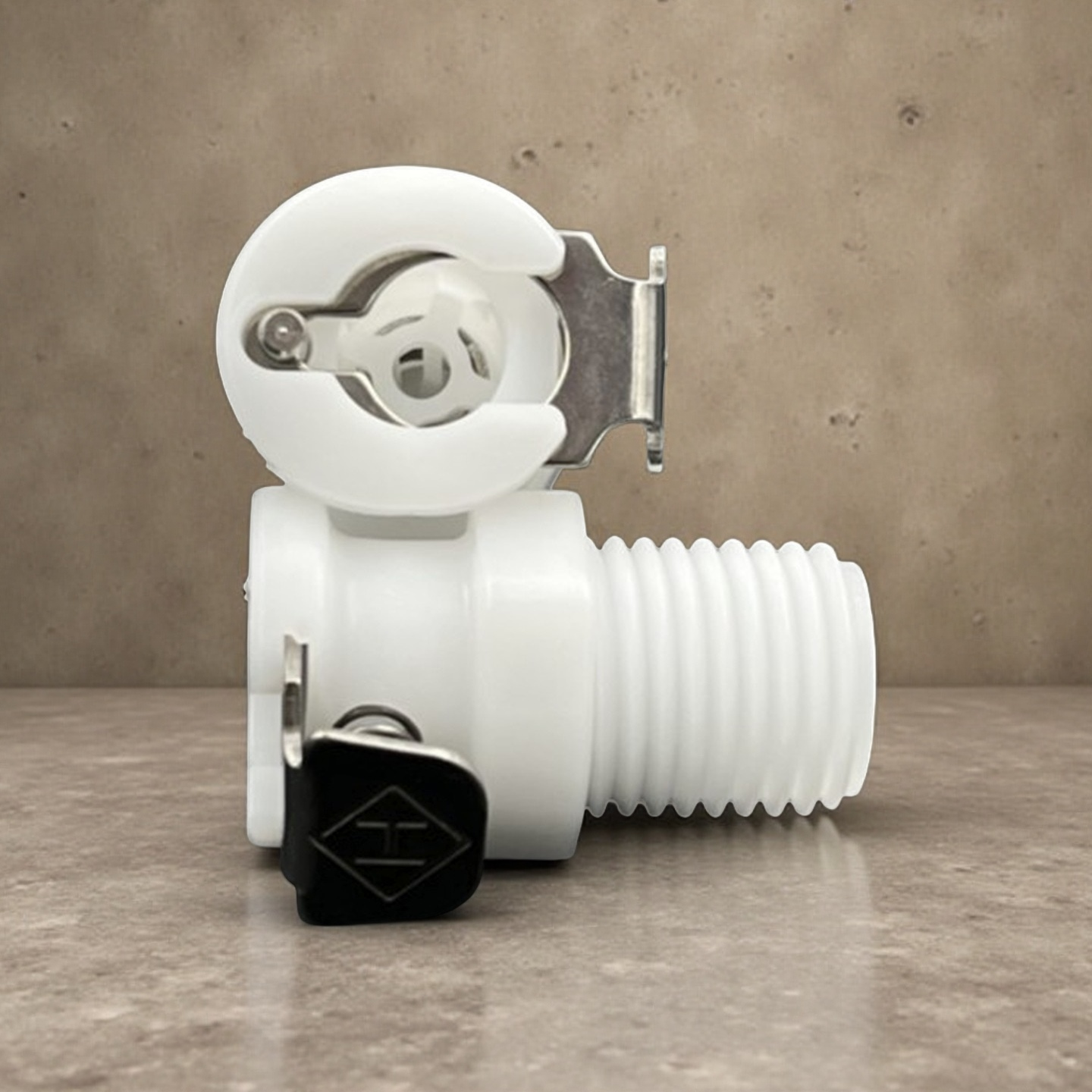

1/8'' Flow Size (Shut Off/Valved)

1/8'' flow size male thread valved socket includes the following dimensions:
1) 1/8'' NPT=SACV2001B02
2) 1/8'' BSPT=SACV2001B02BSPT
3) 1/4'' NPT=SACV2001B04
4) 1/4'' BSPT=SACV2001B04BSPT

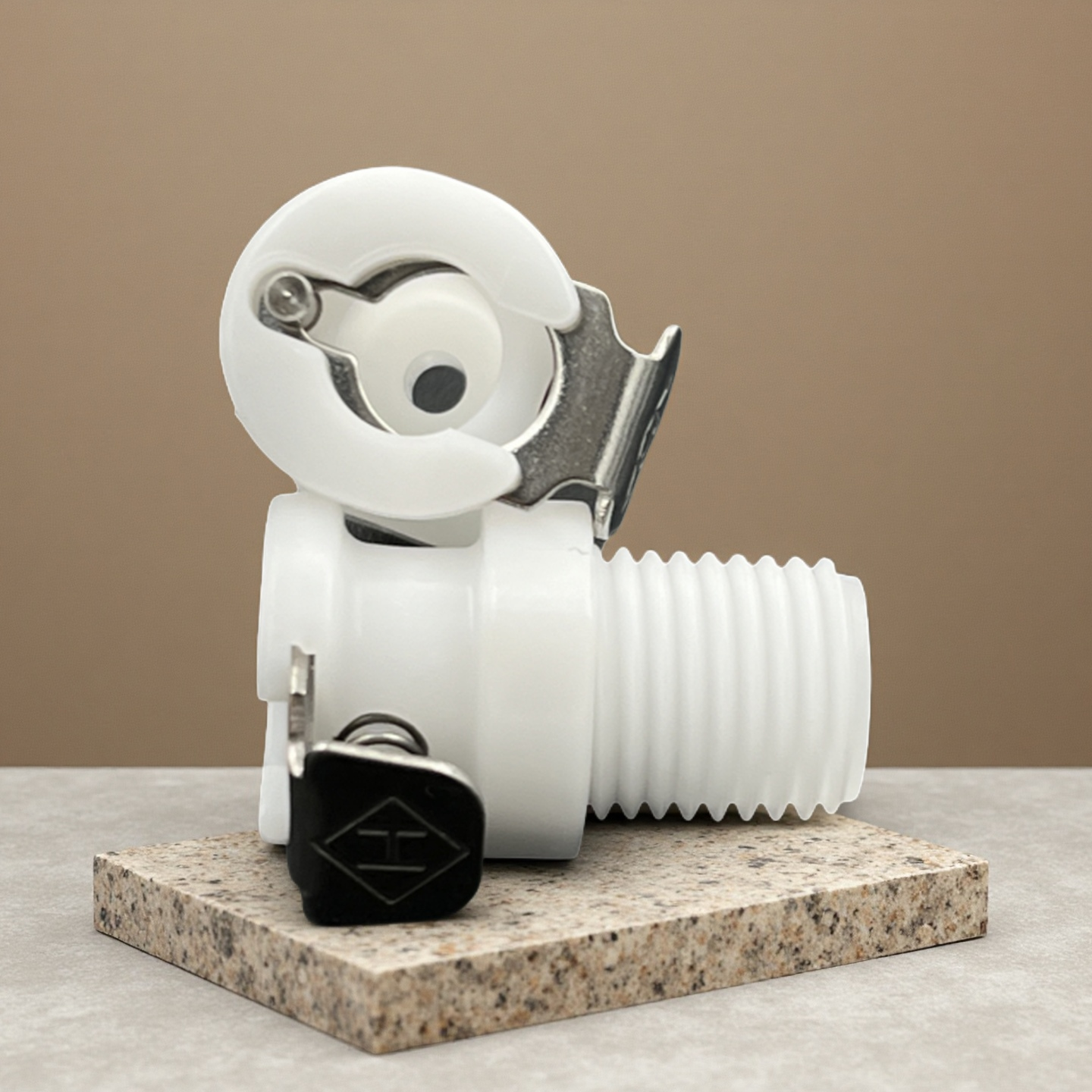

1/8'' Flow Size (Straight Through/Non-valved)

1/8'' flow size male thread non-valved socket includes the following dimensions:
1) 1/8'' NPT=SACR2001Z02
2) 1/8'' BSPT=SACR2001Z02BSPT
3) 1/4'' NPT=SACR2001Z04
4) 1/4'' BSPT=SACR2001Z04BSPT

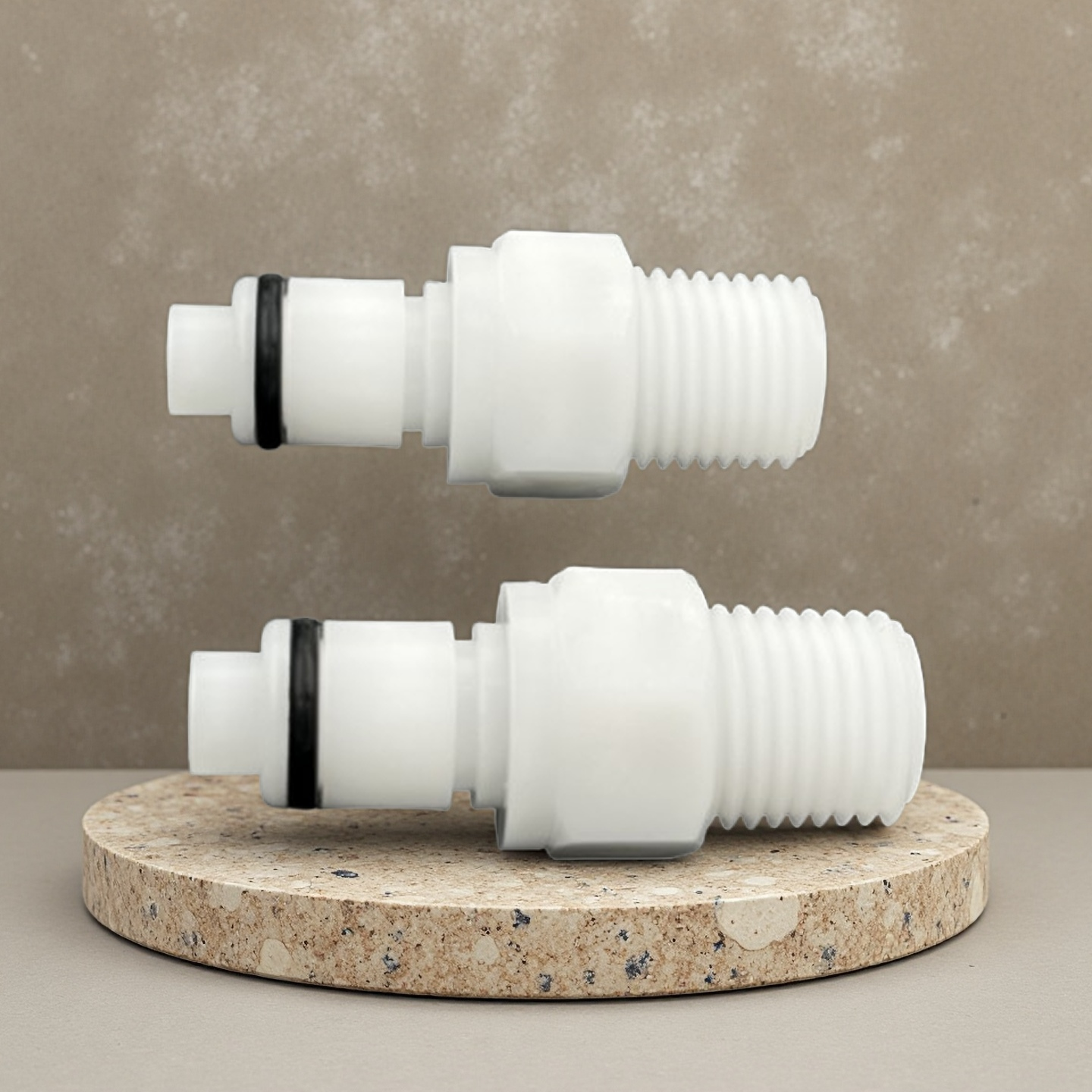

1/4'' Flow Size (Shut Off/Valved)

1/4'' flow size male thread valved plug includes the following dimensions:
1) 1/4'' NPT=PACV4001B04
2) 1/4'' BSPT=PACV4001B04BSPT
3) 3/8'' NPT=PACV4001B06
4) 3/8'' BSPT=PACV4001B06BSPT

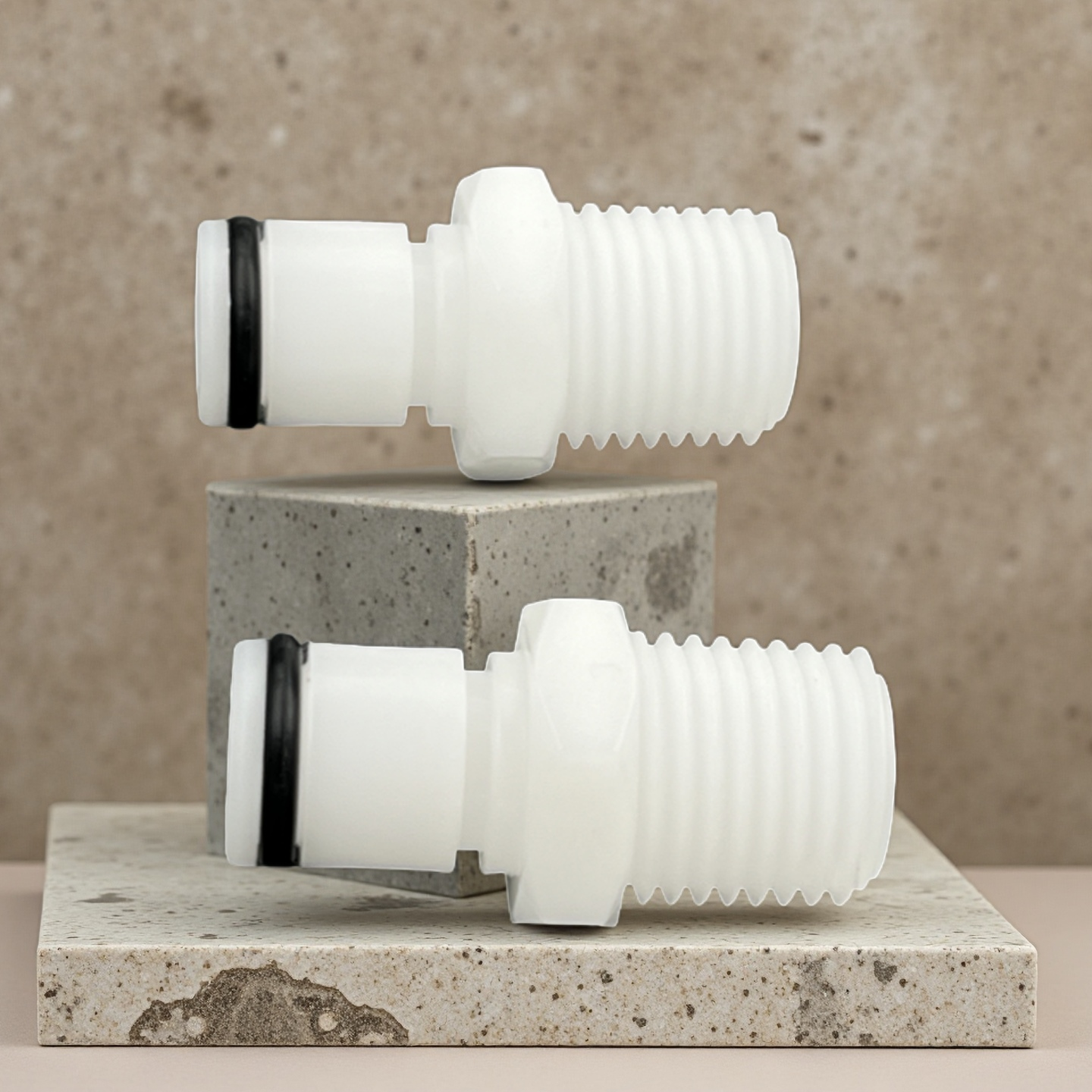

1/4'' Flow Size (Straight Through/Non-valved)

1/4'' flow size male thread non-valved plug includes the following dimensions:
1) 1/4'' NPT=PACR4001B04
2) 1/4'' BSPT=PACR4001B04BSPT
3) 3/8'' NPT=PACR4001B06
4) 3/8'' BSPT=PACR4001B06BSPT

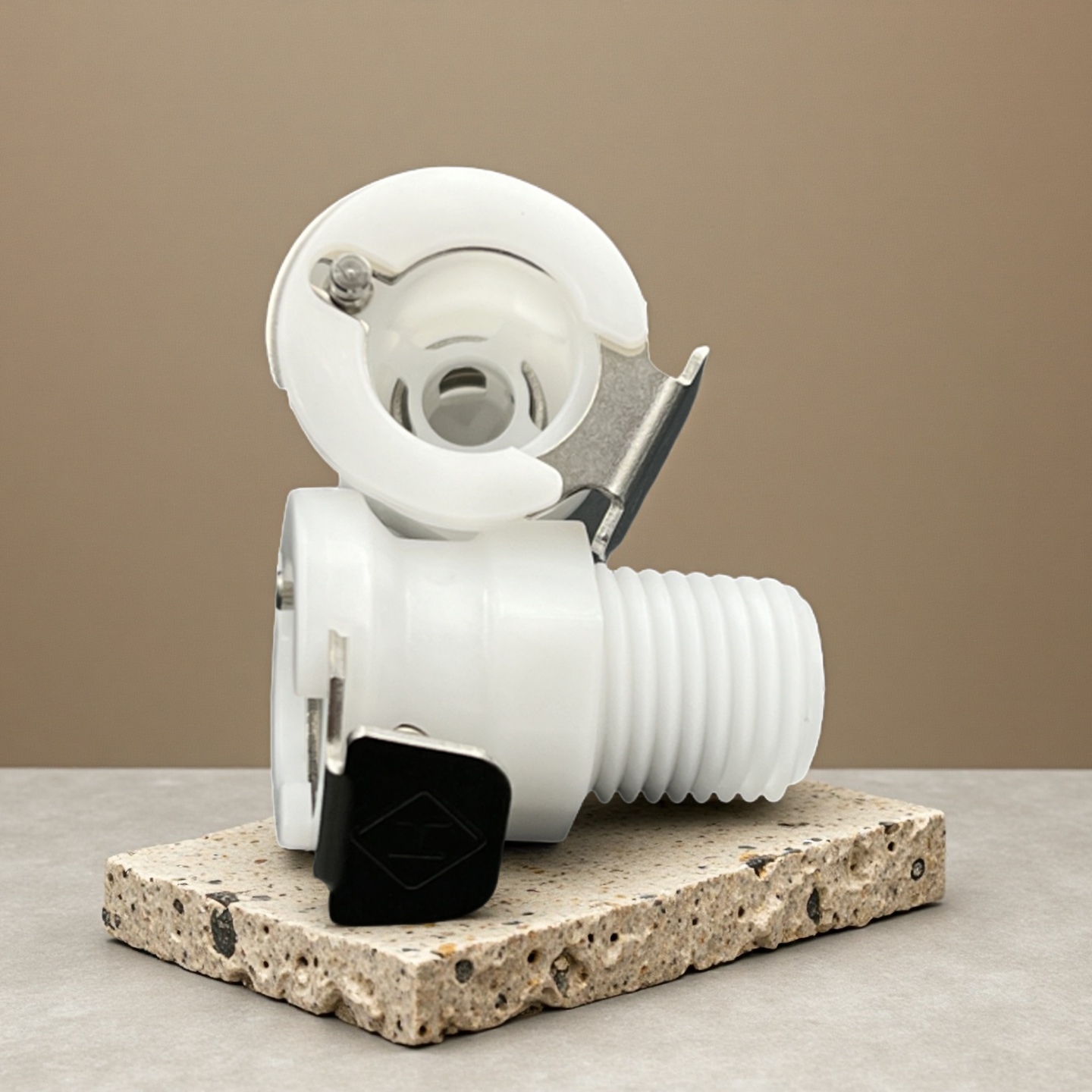

1/4'' Flow Size (Shut Off/Valved)

1/4'' flow size male thread valved socket includes the following dimensions:
1) 1/4'' NPT=SACV4001B04
2) 1/4'' BSPT=SACV4001B04BSPT
3) 3/8'' NPT=SACV4001B06
4) 3/8'' BSPT=SACV4001B06BSPT

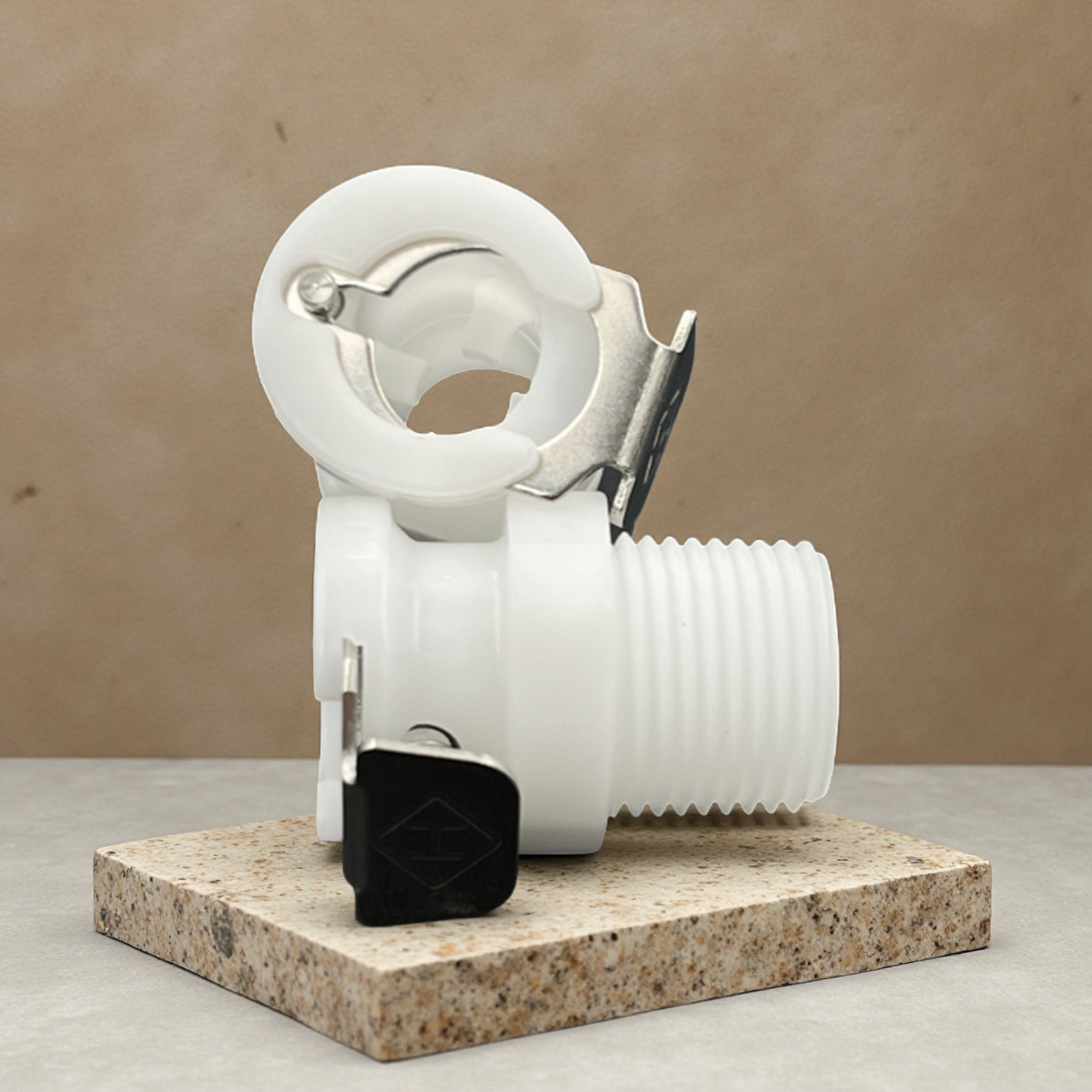

1/4'' Flow Size (Straight Through/Non-valved)

1/4'' flow size male thread non-valved socket includes the following dimensions:
1) 1/4'' NPT=SACR4001Z04
2) 1/4'' BSPT=SACR4001Z04BSPT
3) 3/8'' NPT=SACR4001Z06
4) 3/8'' BSPT=SACR4001Z06BSPT

Frequently Asked Questions

Q: What is the difference between Valved and Non-Valved options?

A: Valved (Shut-off) couplings automatically stop fluid flow upon disconnection to prevent leakage, while Non-valved (Straight Through) options provide an unrestricted, maximum flow path without an internal shut-off mechanism.

Q: What are the main body and O-ring materials available?

A: Standard body materials include POM (Acetal), Almond PP, Grey PP, ABS, and Stainless Steel. O-rings are available in Buna-N, EPDM, FKM, and Silicone. Custom materials are also available upon request.

Q: What temperature and pressure ranges can these fittings handle?

A: These fittings operate within a temperature range of -40°F to 180°F and can withstand pressure levels from vacuum up to 120 psi (8.3 bar).

Q: What mounting configurations and tubing sizes are supported?

A: Mounting types include In-line, Panel Mount, 90-Degree Elbow, and NPT/BSPT Threaded. Tubing sizes accommodate 1/16'', 1/8'', 3/16'', 1/4'', 5/16'', and 3/8'' internal diameter (ID).

Q: Are custom colors or materials available for OEM orders?

A: Yes, in addition to standard body colors (Natural White, Black, Almond, Grey), full customization options are available for colors, specific body polymers, and sealing compounds to suit specialized fluid applications.
