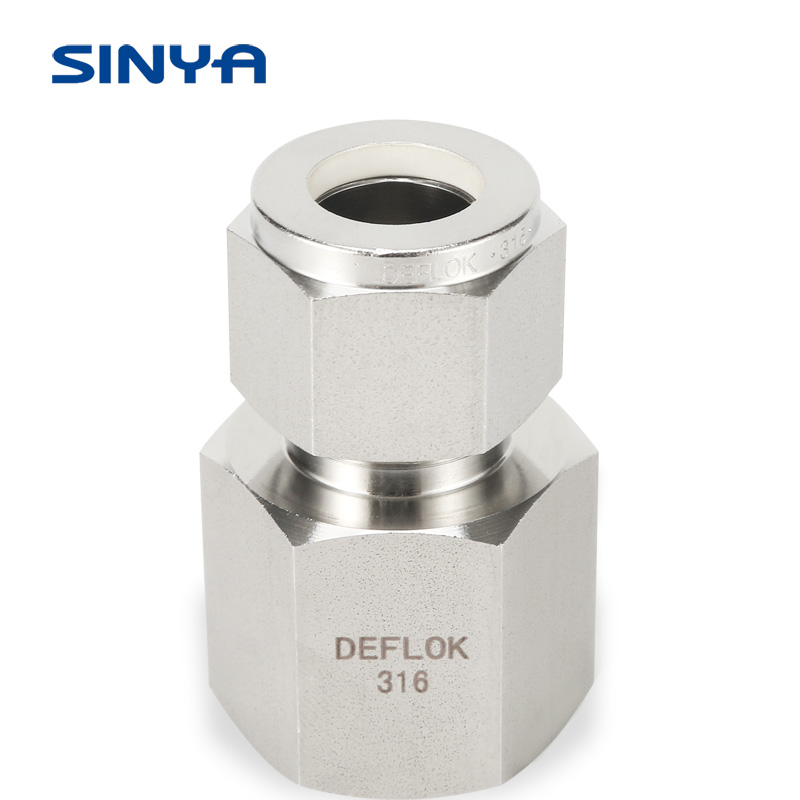

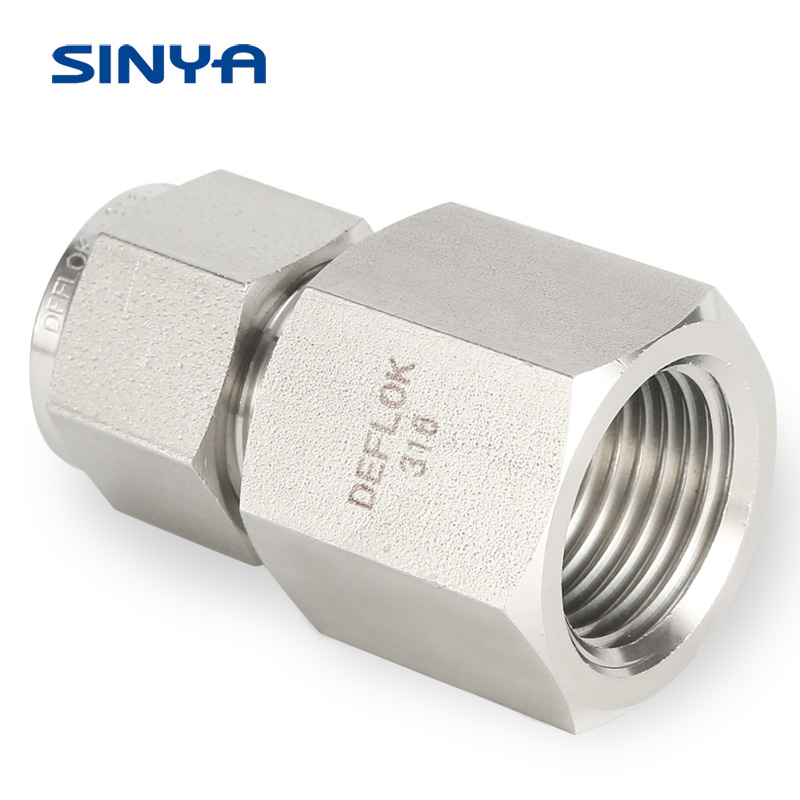

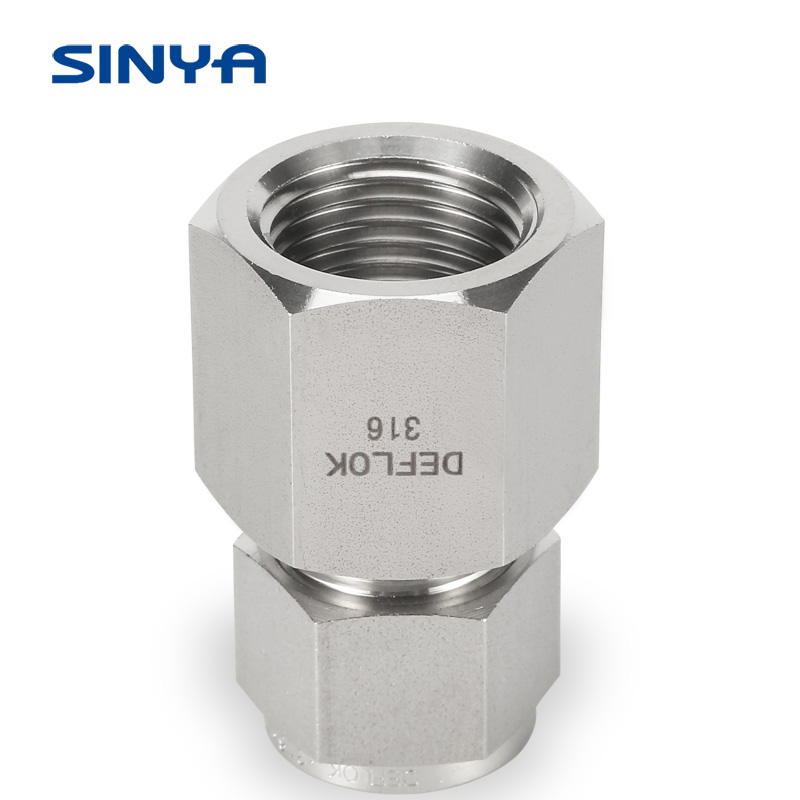

1 / 5
Available Sizes: 1/16" to 1", and 2mm to 25mm.
Working Temperature: -325℉ ~ 800℉ (-198℃ ~ 426℃).
Material Grades: SS 304, SS 316, Brass, Special Alloys.
Thread Types: NPT, BSP, BSPT, UNF, ISO, SAE etc.
Zero Leakage: Reliable seal even under tough working conditions.

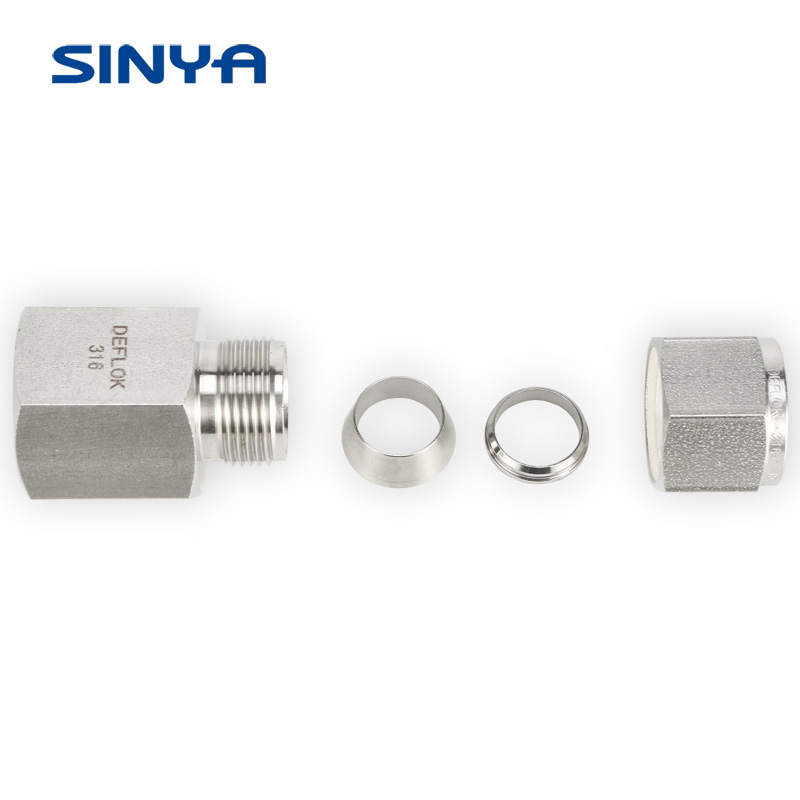

Anti-Galling Design: Silver-plated nut threads prevent body galling.
Cost-Effective: Simple to operate and saves time via elastic seal.
Versatility: Available in a wide variety of configurations.
Reusable: Highly durable and reusable for long-term service.

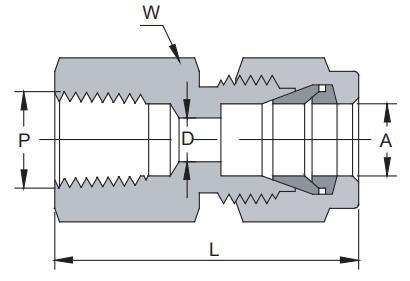

| Order Information | A | P | D | W | L | ||
|---|---|---|---|---|---|---|---|
| in | mm | NPT | mm | in | mm | mm | |
| -SK7-2-2 | 1/8 | 3.17 | 1/8 | 2.28 | 9/16 | 14.28 | 28.95 |
| -SK7-2-4 | 1/8 | 3.17 | 1/4 | 2.28 | 3/4 | 19.05 | 33.52 |
| -SK7-3-2 | 3/16 | 4.76 | 1/8 | 3.04 | 9/16 | 14.28 | 29.71 |
| -SK7-4-2 | 1/4 | 6.35 | 1/8 | 4.82 | 9/16 | 14.28 | 31.24 |
| -SK7-4-4 | 1/4 | 6.35 | 1/4 | 4.82 | 3/4 | 19.05 | 35.81 |
| -SK7-4-6 | 1/4 | 6.35 | 3/8 | 4.82 | 7/8 | 22.22 | 37.59 |
| -SK7-4-8 | 1/4 | 6.35 | 1/2 | 4.82 | 11/16 | 26.98 | 42.42 |
| -SK7-5-2 | 5/16 | 7.93 | 1/8 | 6.35 | 9/16 | 14.28 | 32.00 |
| -SK7-5-4 | 5/16 | 7.93 | 1/4 | 6.35 | 3/4 | 19.05 | 36.93 |
| -SK7-6-2 | 3/8 | 9.52 | 1/8 | 7.11 | 5/8 | 15.87 | 32.76 |
| -SK7-6-4 | 3/8 | 9.52 | 1/4 | 7.11 | 3/4 | 19.05 | 37.59 |
| -SK7-6-6 | 3/8 | 9.52 | 3/8 | 7.11 | 7/8 | 22.22 | 39.11 |
| -SK7-6-8 | 3/8 | 9.52 | 1/2 | 7.11 | 11/16 | 26.98 | 43.94 |
| -SK7-8-4 | 1/2 | 12.70 | 1/4 | 10.41 | 7/8 | 20.63 | 40.38 |
| -SK7-8-6 | 1/2 | 12.70 | 3/8 | 10.41 | 7/8 | 22.22 | 41.91 |
| -SK7-8-8 | 1/2 | 12.70 | 1/2 | 10.41 | 11/16 | 26.98 | 46.73 |
| -SK7-8-12 | 1/2 | 12.70 | 3/4 | 10.41 | 15/16 | 33.33 | 48.26 |
| -SK7-10-6 | 5/8 | 15.87 | 3/8 | 12.70 | 15/16 | 33.33 | 41.91 |
| -SK7-10-8 | 5/8 | 15.87 | 1/2 | 12.70 | 11/16 | 26.98 | 46.73 |
| -SK7-12-8 | 3/4 | 19.05 | 1/2 | 15.74 | 11/16 | 26.98 | 46.73 |
| -SK7-12-12 | 3/4 | 19.05 | 3/4 | 15.74 | 15/16 | 33.33 | 48.26 |
| -SK7-14-12 | 7/8 | 22.22 | 3/4 | 18.28 | 15/16 | 33.33 | 49.78 |
| -SK7-16-12 | 1 | 25.40 | 3/4 | 22.35 | 13/8 | 34.92 | 53.34 |
| -SK7-16-16 | 1 | 25.40 | 1 | 22.35 | 15/8 | 41.27 | 62.23 |
| Order Information | A | P | D | W | L |
|---|---|---|---|---|---|
| mm | NPT | mm | mm | mm | |
| -SK7-3mm-2 | 3 | 1/8 | 2.4 | 14 | 28.7 |
| -SK7-3mm-4 | 3 | 1/4 | 2.4 | 19 | 33.5 |
| -SK7-4mm-2 | 4 | 1/8 | 2.4 | 14 | 29.7 |
| -SK7-6mm-2 | 6 | 1/8 | 4.8 | 14 | 31.3 |
| -SK7-6mm-4 | 6 | 1/4 | 4.8 | 19 | 35.8 |
| -SK7-6mm-6 | 6 | 3/8 | 4.8 | 22 | 37.6 |
| -SK7-6mm-8 | 6 | 1/2 | 4.8 | 27 | 42.5 |
| -SK7-8mm-2 | 8 | 1/8 | 6.4 | 15 | 32.1 |
| -SK7-8mm-4 | 8 | 1/4 | 6.4 | 19 | 37.0 |
| -SK7-8mm-6 | 8 | 3/8 | 6.4 | 22 | 38.5 |
| -SK7-8mm-8 | 8 | 1/2 | 6.4 | 27 | 43.3 |
| -SK7-10mm-4 | 10 | 1/4 | 7.9 | 19 | 37.8 |
| -SK7-10mm-6 | 10 | 3/8 | 7.9 | 22 | 39.4 |
| -SK7-10mm-8 | 10 | 1/2 | 7.9 | 27 | 44.2 |
| -SK7-12mm-4 | 12 | 1/4 | 9.5 | 22 | 40.3 |
| -SK7-12mm-6 | 12 | 3/8 | 9.5 | 22 | 41.9 |
| -SK7-12mm-8 | 12 | 1/2 | 9.5 | 27 | 46.7 |
| -SK7-15mm-8 | 15 | 1/2 | 11.9 | 27 | 46.7 |
| -SK7-16mm-8 | 16 | 1/2 | 12.7 | 27 | 46.9 |
| -SK7-20mm-8 | 20 | 1/2 | 15.9 | 30 | 47.9 |
| -SK7-20mm-12 | 20 | 3/4 | 15.9 | 35 | 49.7 |
| -SK7-22mm-12 | 22 | 3/4 | 18.3 | 35 | 49.7 |
| -SK7-22mm-16 | 22 | 1 | 18.3 | 41 | 57.9 |
| -SK7-25mm-12 | 25 | 3/4 | 21.8 | 35 | 53.4 |
| -SK7-25mm-16 | 25 | 1 | 21.8 | 41 | 62.3 |
1. Custom design, CAD drawing
2. P&ID
3. Component selection
4. Bill of material
5. Professional services such as bending and welding
6. Testing to guarantee the system
7. Professional packaging and delivery
Mode of packing: Export standard package or as your detail request.
Delivery time: 2 weeks after receipt of payment.
Mode of shipment: By Express like DHL, Fedex, TNT, Ups.
Established in 1995.

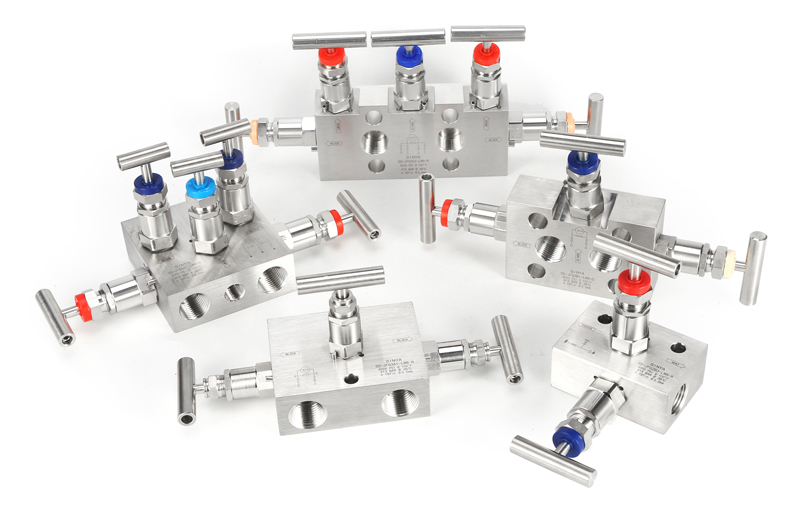

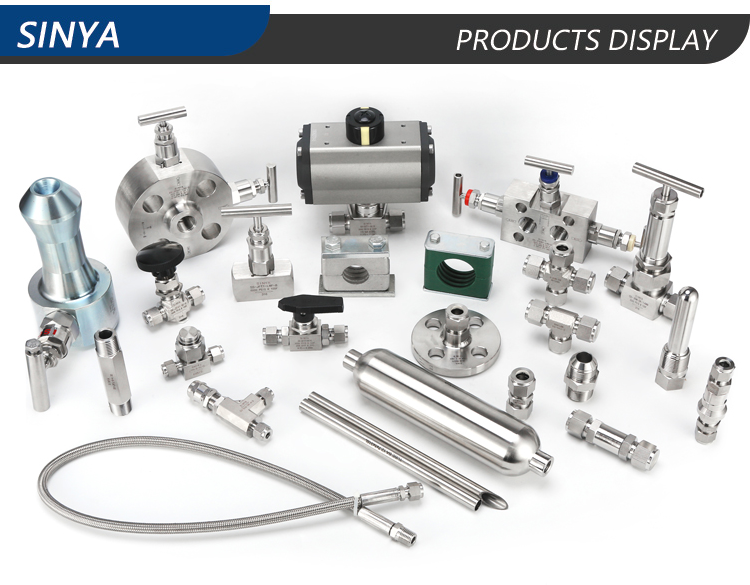

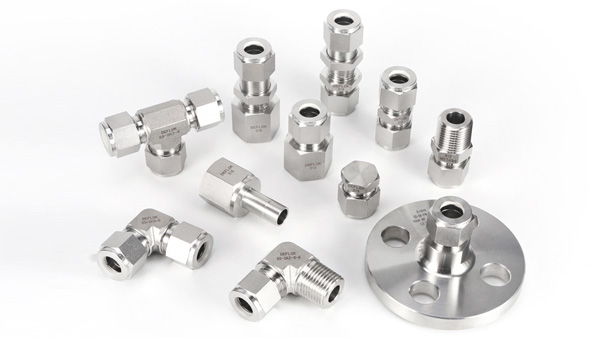

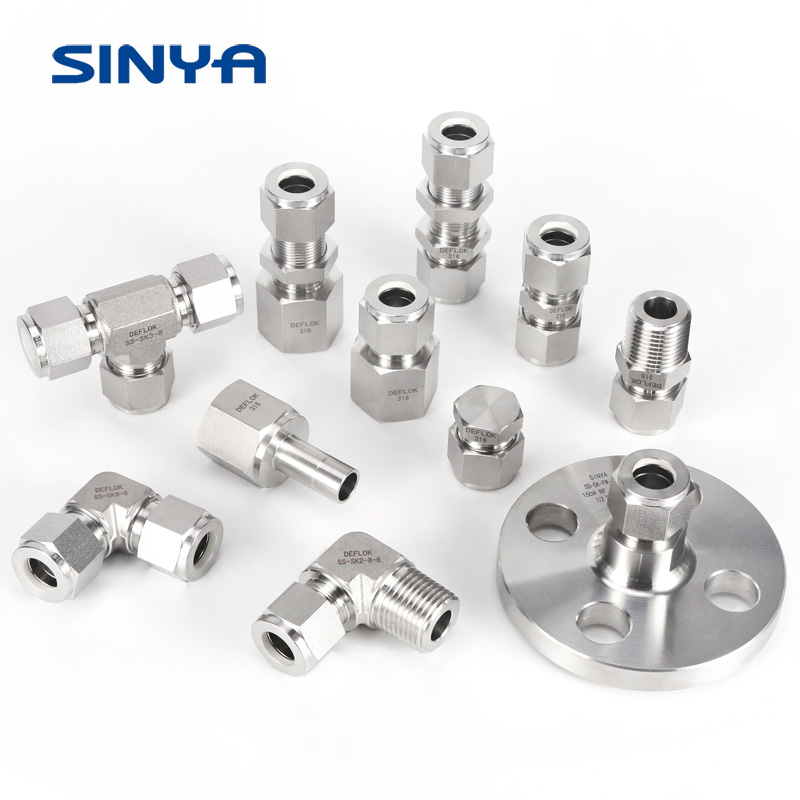

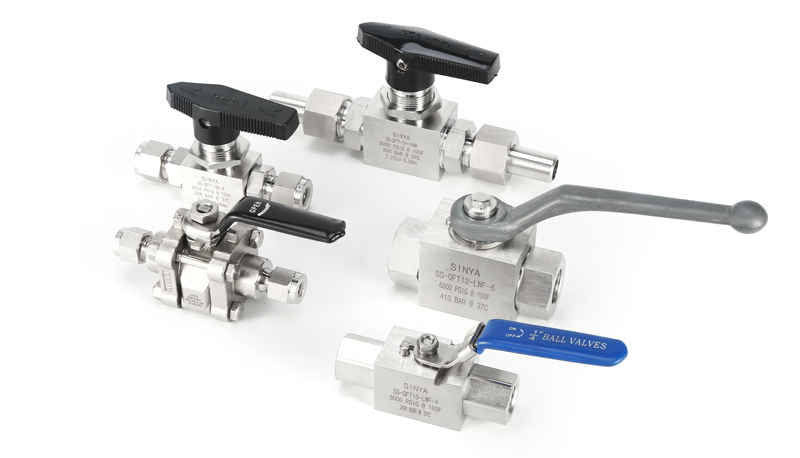

Professional Manufacturer: Instrumentation Tube Fittings, Pipe Fittings, Needle valves, Ball Valves, Check Valves, Manifold Valves, DIN 2353 Fittings, Sampling systems, Water Heater Accessories.
Material Range: Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, Titanium, Zirconium.
Strategic Location: Zhenjiang City, near Shanghai port with convenient transportation access worldwide.
Applied Industries: Chemical, Petrochemical, Power Generation, Oil, Gas, Shipbuilding.
Customer Support: Always available to discuss your requirements and ensure full customer satisfaction.

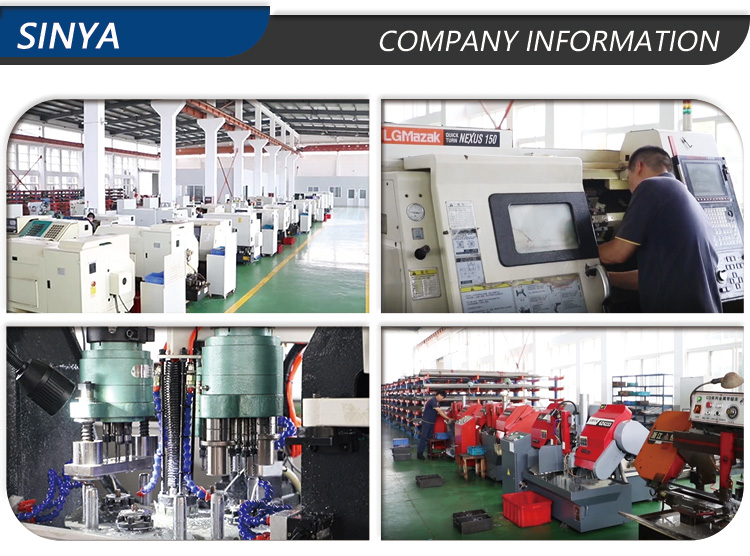

Advanced Equipment: Japanese Mazak CNC machine, 3D measure equipment, Raw Material chemical composition inspection equipment, High pressure test equipment, etc.
Certified Quality: Obtained ISO9001 certificate, CE Certificate.
Global Reach: Exported to Middle East, North America, South America, South East Asia, Europe and other countries.
OEM/ODM: We also welcome OEM and ODM orders. Please feel free to contact and visit us.
