Pre-inspected according to EN 10204 3.1 standards with complete dimensional verification and 100% heat code traceability for Luzon, Visayas, and Mindanao projects.
A comprehensive analysis of metallurgical selection criteria, dual-standard acceptance, and logistical velocity across the Philippine archipelago under the 'Build Better More' infrastructure initiative.
Philippine industrial facilities present a unique procurement profile where American standards (ASME/ANSI B16.9, B16.5, ASTM A234) govern petroleum, energy, and process infrastructure, while Japanese Industrial Standards (JIS B2220, 5K/10K/16K) dominate shipyard operations in Subic, Cebu, and Japanese-invested PEZA industrial economic zones.
Supply chains must accommodate maritime transport between the Port of Manila (MICP), Batangas Container Terminal, and provincial deep-water discharge points such as Cagayan de Oro, Davao, and General Santos. Protective ocean export packaging and moisture barrier crating are mandatory against tropical maritime salinity.
Procurement teams require stringent Mill Test Certification adhering strictly to EN 10204 3.1, coupled with verifiable physical-chemical heat markings to pass Department of Trade and Industry (DTI) - Bureau of Philippine Standards (BPS) requirements without customs delays or costly re-testing port bottlenecks.
From high-enthalpy geothermal brine extraction to high-salinity maritime shipyard assembly, our buttweld fittings and forged flanges operate in the country's most grueling process environments.
The Philippines ranks among the world's top geothermal power producers (Tiwi Albay, Tongonan Leyte, Palinpinon Negros, and Kidapawan Mt. Apo). These plants demand buttweld seamless elbows and reducing tees fabricated in ASTM A234 WPB, ASTM A335 P11/P22, and duplex stainless alloys capable of resisting high hydrogen sulfide (H2S) stress corrosion, hot brine erosion, and cycling thermal fatigue under continuous baseload operation.
Concentrated primarily around Limay (Bataan) and Batangas Bay, petrochemical crackers and oil storage depots require ASME B16.9 buttweld long radius 90-degree elbows, concentric reducers, and weld neck flanges (Classes 150 to 900). Hydrocarbon containment requires full radiography (RT) testing, normalized heat treatment, and compliance with NACE MR0175/ISO 15156 sour crude service limits.
Driven by ongoing concession projects by Manila Water, Maynilad, and provincial water districts, bulk transmission networks require large-diameter carbon steel buttweld reducers, lateral tees, and plate flanges (DN300 to DN2000). Epoxy-lined and yellow-painted components prevent soil corrosion and micro-organism deposition in underground river intakes and tertiary treatment facilities.
Shipbuilding clusters at Subic Bay, Balamban (Cebu), and Batangas demand rapid turnarounds for JIS 5K/10K/16K marine flanges, galvanized butt-welded pipe spools, and sea-water cooling headers. Grade 316L stainless steel and Cu-Ni alloys resist severe chloride pitting in offshore ballast piping and marine vessel bilge circuits.
The Caraga region and Palawan nickel processing plants (such as HPAL acid leaching systems) require specialized high-nickel alloy (Inconel 625, Hastelloy C276) and heavy-wall carbon steel ASTM A234 WPB/WPHY fittings. Piping must endure high concentrations of sulfuric acid slurries, abrasive gangue particulate transport, and elevated working pressures.
Every single buttweld fitting, flange, and high-tensile fastener manufactured for shipment to the Philippines carries indelible identification that corresponds unequivocally with your EN 10204 3.1 inspection certificate.
Cross-reference piping bills of materials (BOM) against certified manufacturing scopes, pressure ratings, and corresponding ASTM/ASME/JIS standard designations.
| Component Type | Applicable Standards | Available Size Range | Wall Thickness / Pressure Class | Typical Metallurgy | Typical Philippine Application |
|---|---|---|---|---|---|
| Seamless Buttweld Elbows (45° / 90° / 180°) | ASME B16.9, DIN 2605, JIS B2311 | 1/2" to 24" (DN15 - DN600) | SCH 10S through SCH 160 / XXS | ASTM A234 WPB, WPC, A403 WP304L/316L | Power plant steam lines, Limay refinery process spools |
| Welded Large-Diameter Elbows & Tees | ASME B16.9, MSS SP-75 | 26" to 72" (DN650 - DN1800) | SCH 20, 30, 40, STD, XS | ASTM A234 WPB, ASTM A860 WPHY 52/60/65 | MWSS water transmission conduits, bulk storage terminals |
| Concentric & Eccentric Reducers | ASME B16.9, MSS SP-43 | 1/2" x 1/4" to 48" x 36" | All Schedules (SCH 5S to SCH 160) | A234 WPB, A403 WP316L, Duplex 2205 | Pump suction/discharge headers, chemical processing |

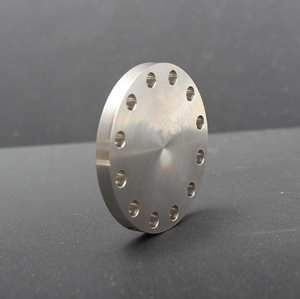

| Forged Flanges (WN, SO, Blind, Threaded) | ASME B16.5, B16.47, JIS B2220 | 1/2" to 60" (Class 150 to 2500) | Class 150, 300, 600, 900, 1500, 2500; JIS 5K-20K | ASTM A105N, A182 F304L, F316L, A350 LF2 | Petroleum isolation manifolds, Balamban marine piping |
| Forged Socket Weld & Screwed Fittings | ASME B16.11, BS 3799 | 1/8" to 4" (DN6 - DN100) | 2000#, 3000#, 6000#, 9000#; NPT / BSPT | ASTM A105, A182 F316L, F11, F22 | Boiler blowdown lines, instrumentation drains, lube oil |
| High-Tensile Stud Bolts & Hex Nuts | ASTM A193 / A194, DIN 931 / 934 | M12 to M72; 1/2" to 3-1/2" UNC | Grades B7/2H, B8/8, B8M/8M, Grade 8.8/10.9 | Chromoly 4140, 304, 316, Hot-Dip Galvanized/PTFE | Pressure vessel flanged joints, structural machinery mounts |
Market modernization is driving mechanical contractors and project owners to shift procurement models toward verified tier-one direct mill suppliers.
With massive government capital allocation toward inter-island bridges, airport hubs (such as New Manila International Airport in Bulacan), expressway utilities, and regional water treatment expansions, contractor demand has escalated for pre-tested, high-tonnage carbon and stainless steel buttweld schedules that eliminate on-site welding rejection risks.
Because the Philippine maritime zone features high atmospheric relative humidity (averaging 75%–85%) saturated with airborne sodium chloride, traditional austenitic grade 304/304L fittings often develop pit-initiated stress cracks. Marine developers and power plants are standardizing on UNS S31803 / S32205 Duplex to double service life cycles.
Project managers are increasingly circumventing domestic hardware stockists who carry mixed-grade, untraceable components. Sourcing directly from recognized export manufacturers ensures genuine mill certificates, customized Schedule combinations, significant unit cost savings, and direct engineering accountability.
Over three continuous decades, our production facilities have engineered and exported high-integrity buttweld fittings, forged flanges, and high-tensile fasteners to discerning EPC contractors throughout the Middle East, Europe, and Southeast Asia.
Real-world answers covering customs clearance, standard cross-referencing, project delivery lead times, and quality documentation for Philippine destinations.
