Engineered for high-yield steel connections, critical piping spools, and heavy offshore frameworks. Every batch undergoes ultrasonic testing, MPI checks, and spectral chemical analysis.
Combining three decades of metallurgy expertise, governmental export house recognition, and stringent petrochemical compliance.
Operates an audited ISO 9001 quality infrastructure with EIL (Engineers India Limited) and IBR (Indian Boiler Regulations) technical approvals, satisfying severe API 6A and ADNOC pipeline project specifications.
Forged exclusively from prime structural billets procured from vetted international mills across India, South Korea, and Japan. Fully compliant with NACE MR0175/ISO 15156 sour gas service protocols.
Every single heavy hex bolt is permanently roll-marked with manufacturer insignia, steel grade, and individual heat numbers, directly linked to EN 10204 Type 3.1 inspection test certificates.
A technical evaluation for piping specialists, EPC designers, and quality assurance executives.
Heavy hex bolts feature an expanded "Width Across Flats" (F) compared to standard hexagonal profiles (DIN 931/933 or ASME B18.2.1 regular). This geometric enhancement delivers distinct mechanical advantages in critical assemblies:
High-tensile fasteners (tensile strength ≥ 1000 MPa) deployed in offshore or sour hydrocarbon environments require strict mitigation against stress corrosion cracking (SCC):
Comprehensive standard overview covering metric DIN/EN systems and imperial ASME/ASTM classifications.
| Standard / Spec | Material Grade | Size Range | Tensile Strength (Min) | Surface Finish Options | Target Industries |
|---|---|---|---|---|---|

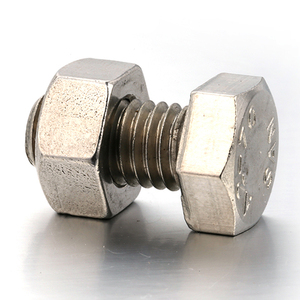

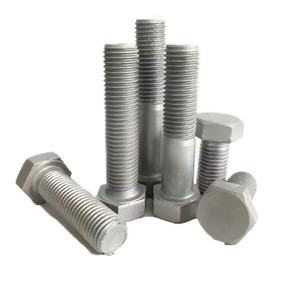

| ASME B18.2.1 / ASTM A193 | Alloy Steel Grade B7 / B7M | 1/2" to 3.0" (UNC/8UN) | 125 ksi (860 MPa) | Cadmium, Zinc-Nickel, PTFE, Black Oxide | Oil & Gas, Petrochemical, Pressure Vessels |
| ASME B18.2.6 / ASTM F3125 | Grade A325 / A490 Heavy Hex | 1/2" to 1-1/2" | 120 - 150 ksi (830 - 1040 MPa) | Hot Dip Galvanized (HDG), Geomet, Plain | Structural Bridges, Commercial Steel Frames |
| EN 14399-4 / EN 14399-3 | System HV / HR (8.8 / 10.9) | M12 to M36 Metric | 800 - 1040 MPa | Hot-Dip Spun Galvanized, Sherardized | Wind Turbine Towers, Heavy Preloaded Steel |

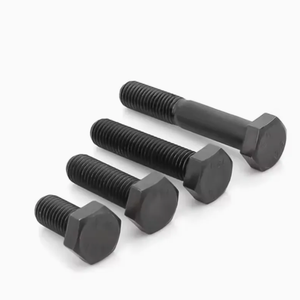

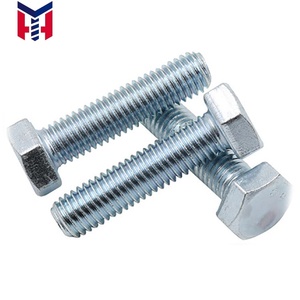

| ISO 4014 / DIN 931 | High Tensile Class 8.8, 10.9, 12.9 | M10 to M72 Heavy Shank | 800 - 1220 MPa | Electrolytic Zinc, Zinc Flake (Dacromet) | Heavy Mining Machinery, Rail Infrastructure |
| ASTM A320 / A320M | Low-Temp Alloy L7 / L7M | 1/2" to 2-1/2" | 125 ksi (Charpy Impact @ -101°C) | Fluoropolymer Coated, Xylan 1070 | Cryogenic Tanks, LNG Liquefaction Piping |
Insights into shifting regulatory landscapes, environmental directives, and advanced offshore installation requirements.
Global procurement is rapidly pivoting away from electro-galvanizing and hexavalent chromium coatings. Hexavalent-free zinc-flake and multi-layer fluoropolymer (PTFE/Xylan) finishes now dominate, achieving 1,500+ hours in ASTM B117 salt spray testing with zero risk of hydrogen uptake during deposition.
Tier-1 EPC operations now demand machine-readable QR codes linked directly to cloud-based Mill Test Reports (EN 10204 3.1/3.2). Automated verification ensures rapid, error-free field audits, preventing substandard counterfeit fasteners from entering high-consequence refinery spool assemblies.
Subsea foundations and multi-megawatt wind turbines are driving demand for massive diameters (M48 through M72) forged under ultra-clean electric arc furnace (EAF) steel chemistry, strictly tested for Charpy V-Notch toughness down to -40°C.
Direct technical answers to common queries regarding standards, quality assurance, and order execution.
Heavy hex bolts possess a wider dimension across the flats (F) than standard hex bolts of the same nominal diameter. This increased head surface area distributes clamping forces over a broader contact zone, significantly lowering localized bearing stress on steel mating members and gaskets.
Every shipment is dispatched with certified EN 10204 Type 3.1 Inspection Mill Test Certificates. Documentation details melt chemistry, heat treatment records, tensile stress, yield point, elongation, reduction of area, Charpy impact test results, and surface coating thickness reports.
Bolts are threaded prior to coating, followed by centrifugal hot-dip galvanizing to spin off excess molten zinc. Nuts are tapped oversize after galvanizing in strict compliance with ASTM A563/ISO 10684 allowances, guaranteeing smooth torque characteristics without stripping protective zinc coatings.
Yes. Beyond standard imperial and metric lines, we forge custom fasteners to CAD drawings up to M72 or 3" diameter. In addition to high-tensile carbon and alloy steels (B7, 4140, 42CrMo4), we forge exotic alloys including Stainless 316L, 904L, Duplex 2205, Super Duplex 2507, Inconel 625, and Monel 400.
Submit your line item schedules, project drawings, or bill of materials. Our technical sales engineers verify governing standards, coatings, and delivery timeframes within 4 working hours.
